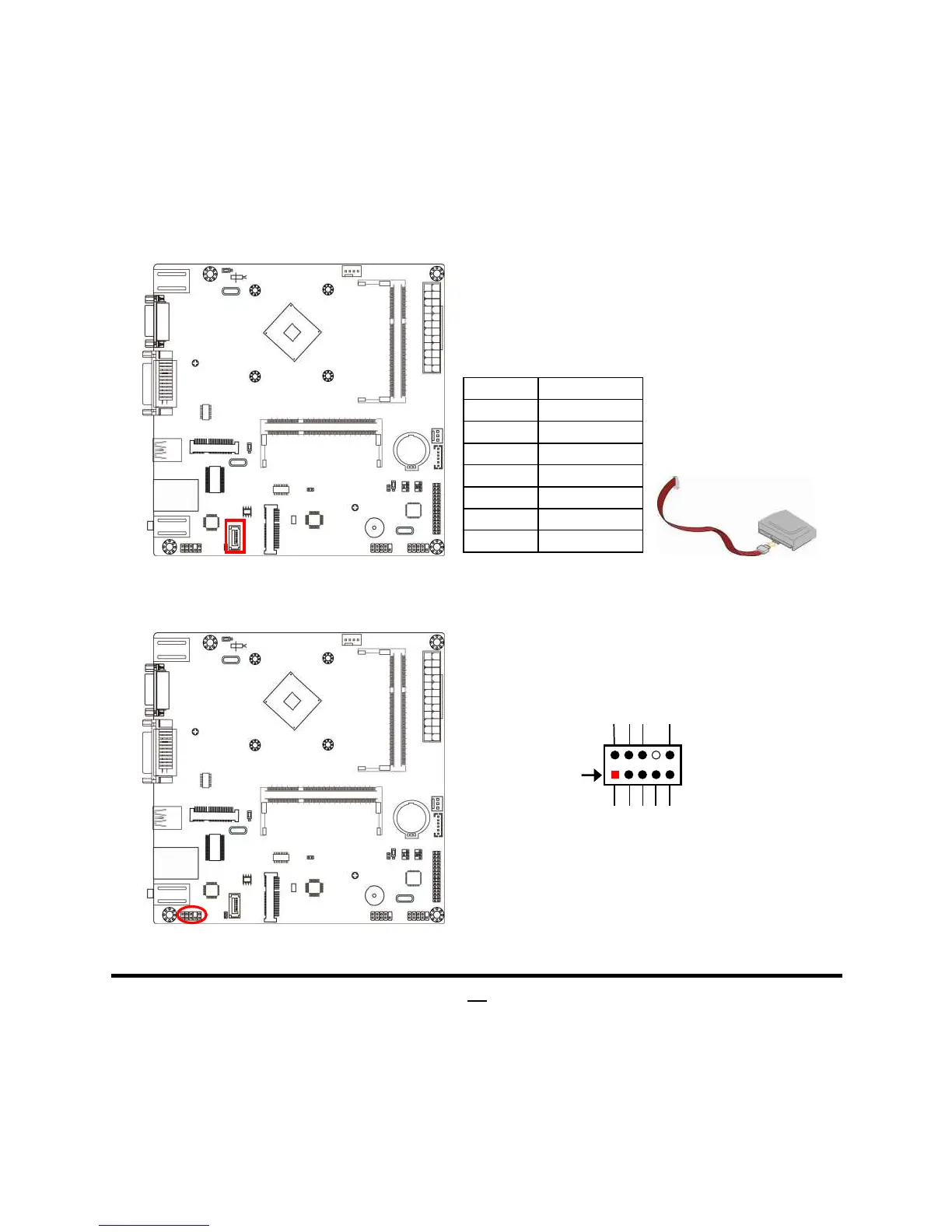

(4) SATA2 (7-pin):SATAII Port connector
SATA2 port is a SATAII port that supports 3 GB/s transfer rate.
Pin No. Defnition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
2-2-2 Headers
(1) FP_AUDIO (9-pin): Line-Out, MIC-In Header
This header connects to Front Panel Line-out, MIC-In connector with cable.
Line-Out, MIC Header
FP_AUDIO
Pin 1
MIC2-L
LINE OUT-L
MIC2-R
LINE OUT-R
NC
GND
NC
NC
NC
2

Intel Bay Trail Series Specifications

General

Memory Type	DDR3L
Max Memory Size	8 GB
Graphics Output	HDMI, DisplayPort, VGA
USB Ports	USB 3.0, USB 2.0
SATA Ports	SATA 3.0
PCI Express Revision	2.0
TDP	4.5-10 W
Chipset	Integrated
