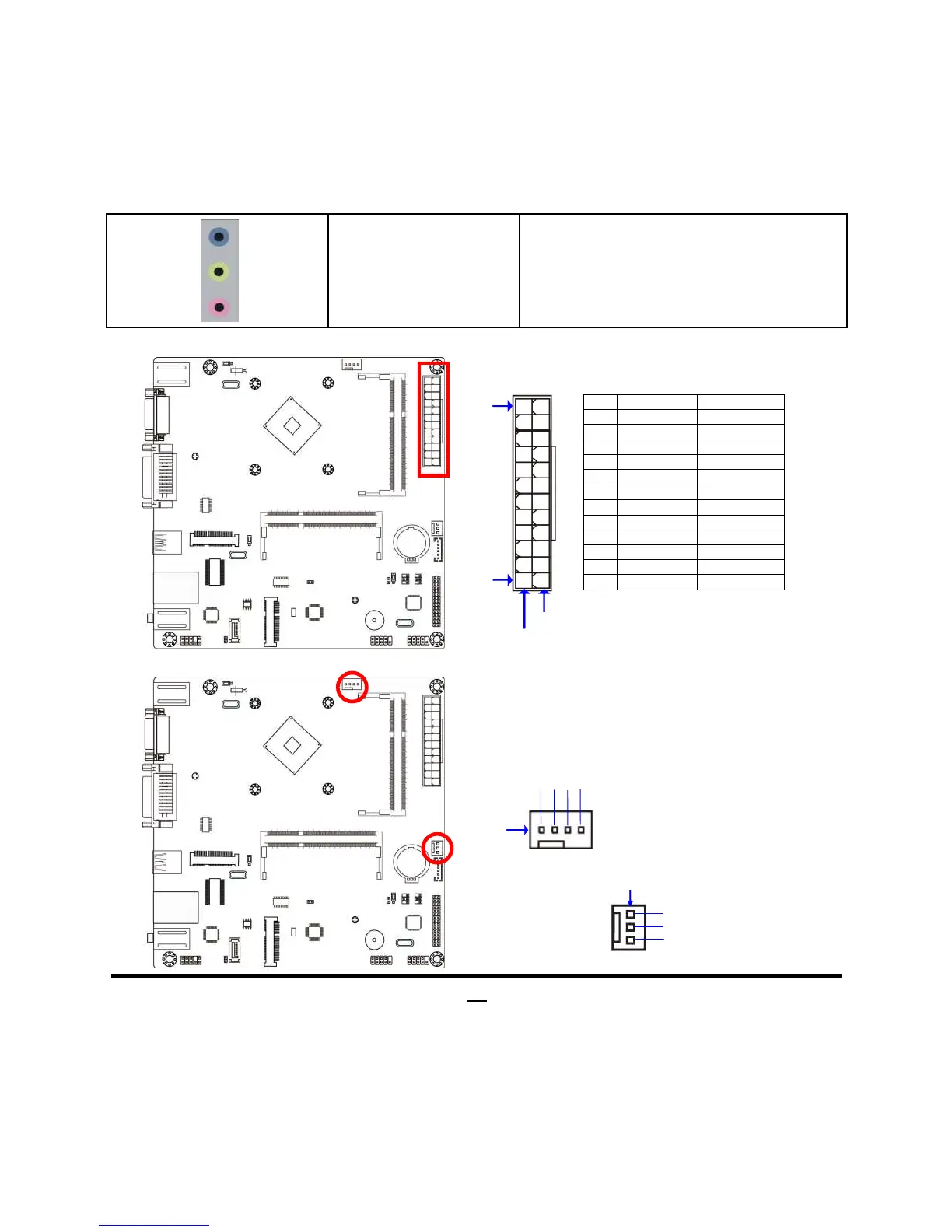

Audio
Connectors(3-jack)
BLUE : Line-in Connector
GREEN: Line-out Connector
PINK : MIC Connector
(2) ATXPWR (24-pin block): Power Connector
PIN
ROW1 ROW2
1 +3.3V +3.3V
2 +3.3V -12V
3 GND GND
4 +5V Soft Power on
5 GND GND
6 +5V GND
7 GND GND
8 Power OK -5V
9 +5V Stand by
+5V
10 +12V +5V
11 +12V +5V
12 +3.3V GND
24-pin Main Power Connector
Row2
Pin1
Row1
Pin12
(3) CPUFAN (4-pin)/SYSFAN1 (3-pin): FAN Headers
CPUFAN
Pin1
GND
+12V Fan Power
Fan Speed
Control
Pin1
+12V Fan Power
GND
Fan Speed
SYSFAN
