Intel Bay Trail Series User Manual

10
2-2 Connectors and Headers
2-2-1 Connectors

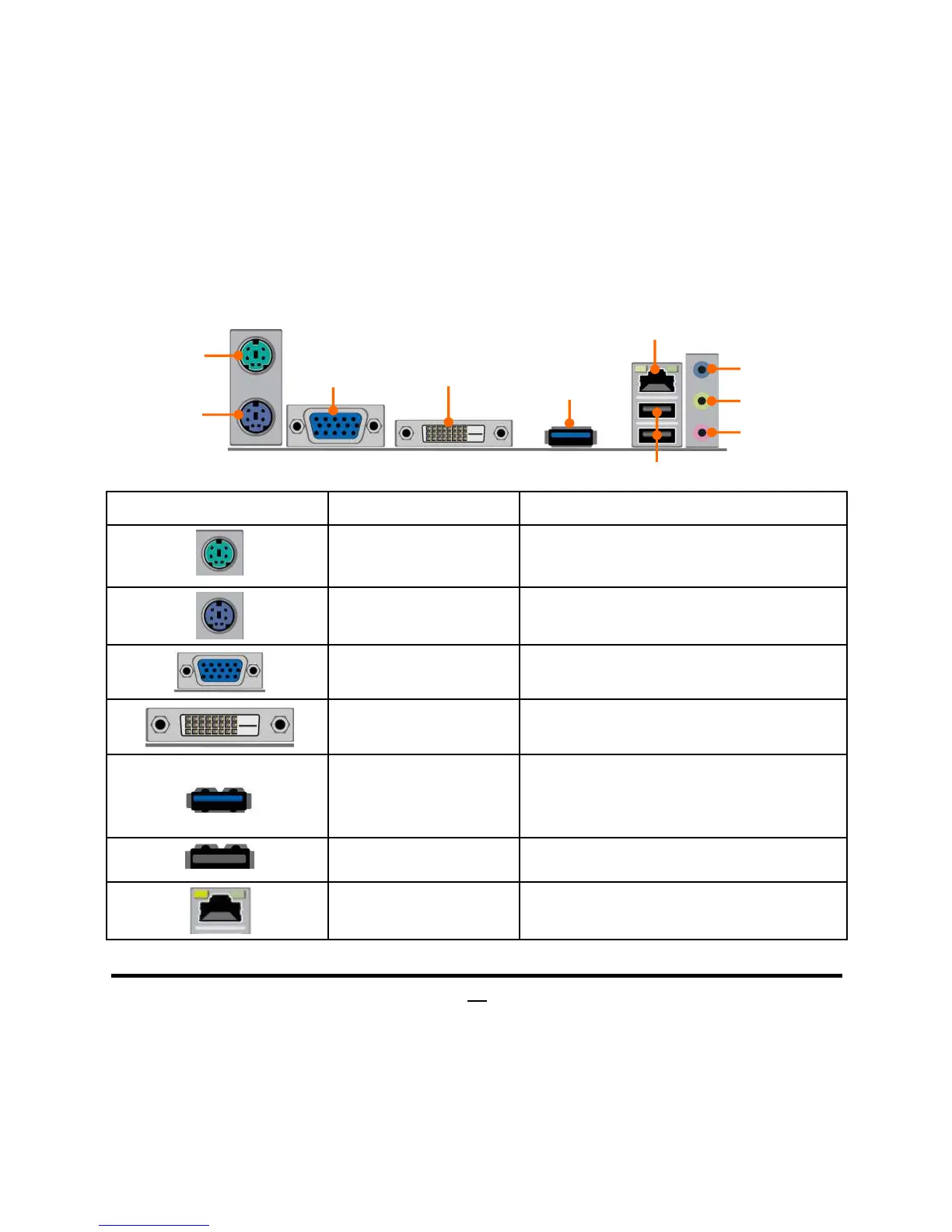

(1) Rear IO Diagram Connectors
Icon Name Function
PS/2 Mouse Port
For user to connect PS/2
mouse device to the
board;
PS/2 Keyboard Port
For user to connect PS/2
keyboard device to
the board.
VGA Port
T
o connect display device that support VGA
specification.
DVI-D Port
T
o connect display device that support
DVI-D specification.
USB 3.0 Port
To
connect USB keyboard, mouse or other
devices compatible with USB specification.
USB 3.0 ports supports up to
5Gbps data
transfer rate.
USB 2.0 Port
To
connect USB keyboard, mouse or other
devices compatible with USB specification.
RJ-45 LAN Port
This connector is standard RJ-45
LAN jack
for Network connection.
MIC-IN
Line-OUT
PS/2
Keyboard Port
USB 2.0 Ports
RJ-45 LAN Port
PS/2
Mouse Port
DVI-
D Port
VGA Port
USB 3.0 Port
Line-IN

Intel Bay Trail Series Specifications

General

Memory Type	DDR3L
Max Memory Size	8 GB
Graphics Output	HDMI, DisplayPort, VGA
USB Ports	USB 3.0, USB 2.0
SATA Ports	SATA 3.0
PCI Express Revision	2.0
TDP	4.5-10 W
Chipset	Integrated
