2-1 Jumper Setting

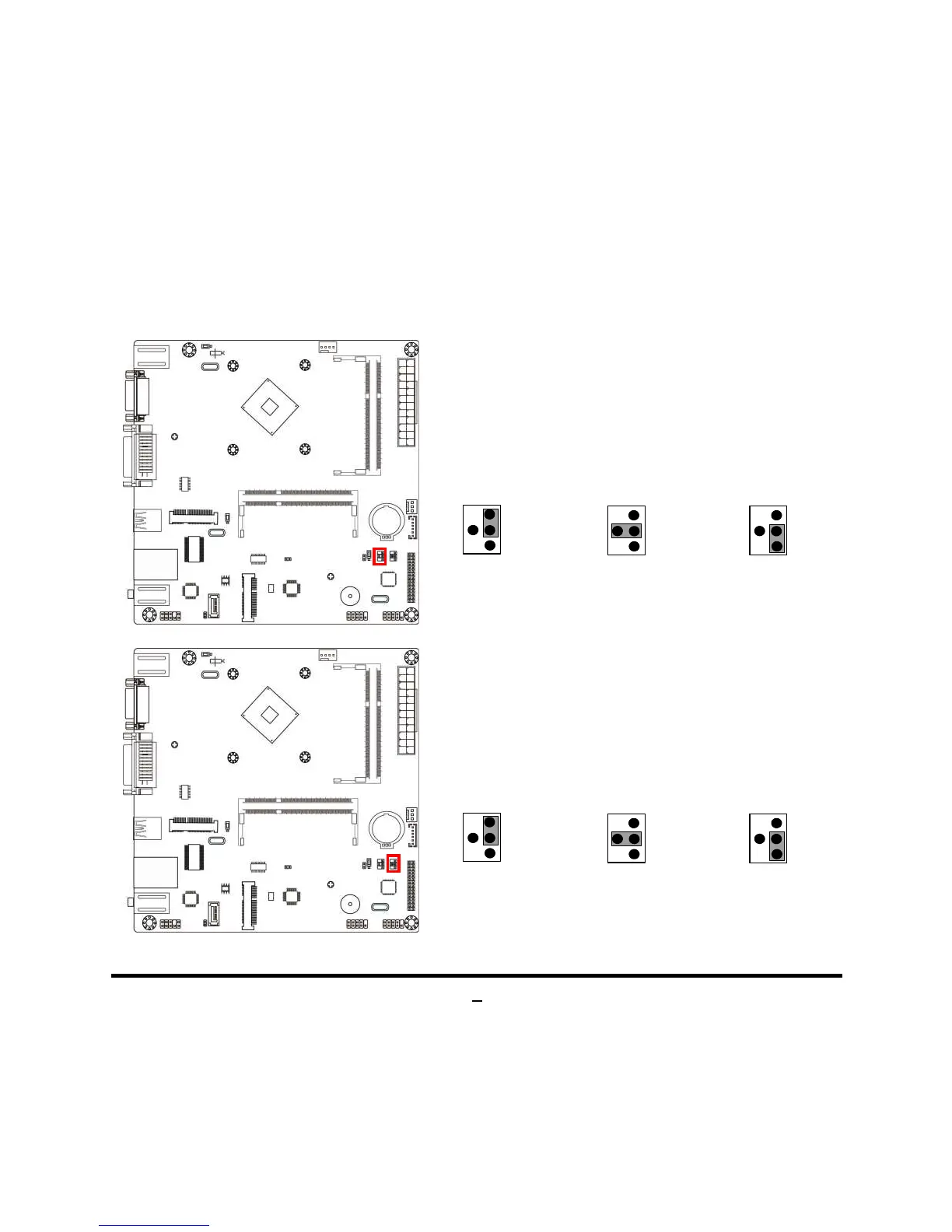

JP3 (4-pin): INVERTER1 Back Light VCC 3.3V/5V/12V Select
JP3→Inverter Back Light
6
4
2
3
1
5
1
2
4
6
3
5
2
4
6
1
3
5
2-4 Closed:
Inverter Backlight
VCC= 3.3V;
3-4 Closed:
Inverter Backlight
VCC= 5V;
4-6 Closed:
Inverter Backlight
VCC= 12V.
JP4 (4-pin): LVDS VCC 3.3V/5V /12V Select
JP4→LVDS VCC
6
4
2
3
1
5
1
2
4
6
3
5
2
4
6
1
3
5
2-4 Closed:
VCC=3.3V;
3-4 Closed:
VCC= 5V;
4-6 Closed:
VCC= 12V.
