13

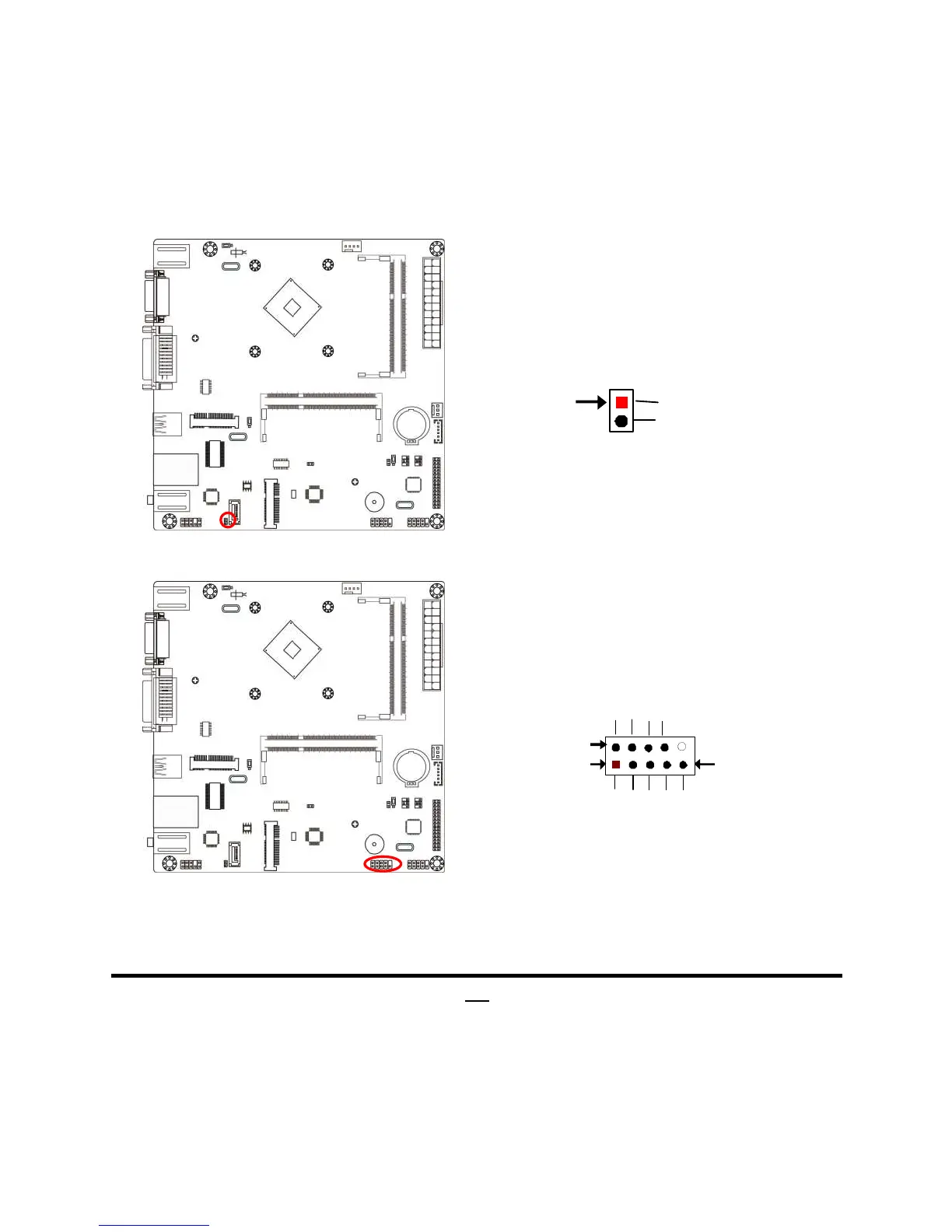

(2) HDMI_SPDIF(2-Pin): SPDIF_Out Header
Pin 1
SPDIF-O UT
GND
(3) COM (9-Pin): RS232 Serial Port Header
Serial Port Header
DCD
Pin1
Pin
6
Pin5
SIN
SOUT
DTR
GND
DSR
RTS
CTS
RI
