14

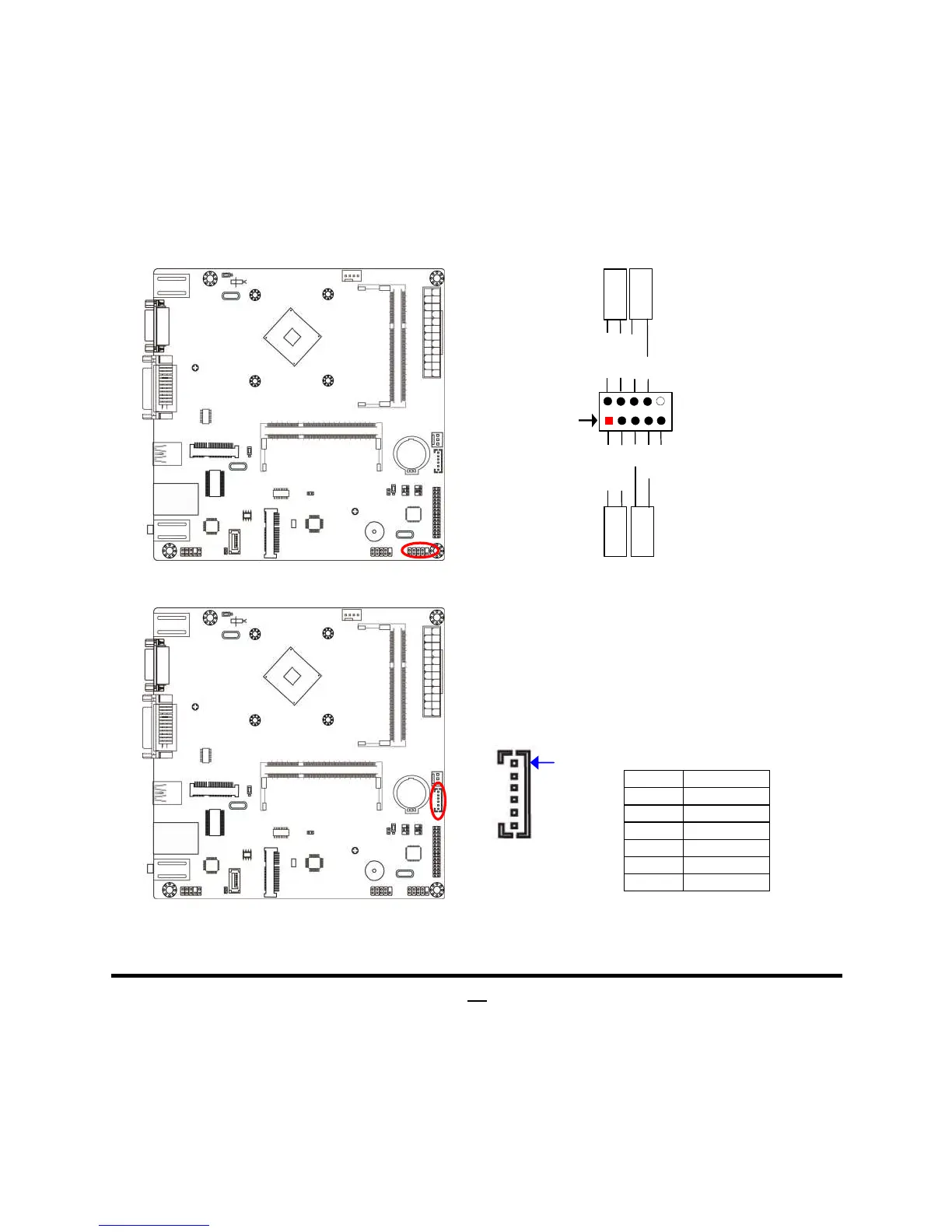

(4) JW-FP (9-pin): Front Panel Header
HDLED
RESET
HDDLED+
GND
PWRLED+
PWRBTN
GND
PWRLED-
HDDLED-
RSTSW
VCC5
PWRBTN
Pin 1
2
PWR LED
(5) INVERTER (6-Pin): Inverter Header
Pin1
INVERTER
Pin No. Definition
1 BKLT_PWR1
2 BKLT_PWR2
3 BKLT_EN
4 BKLT_PWM
5 GND1
6 GND2
