15

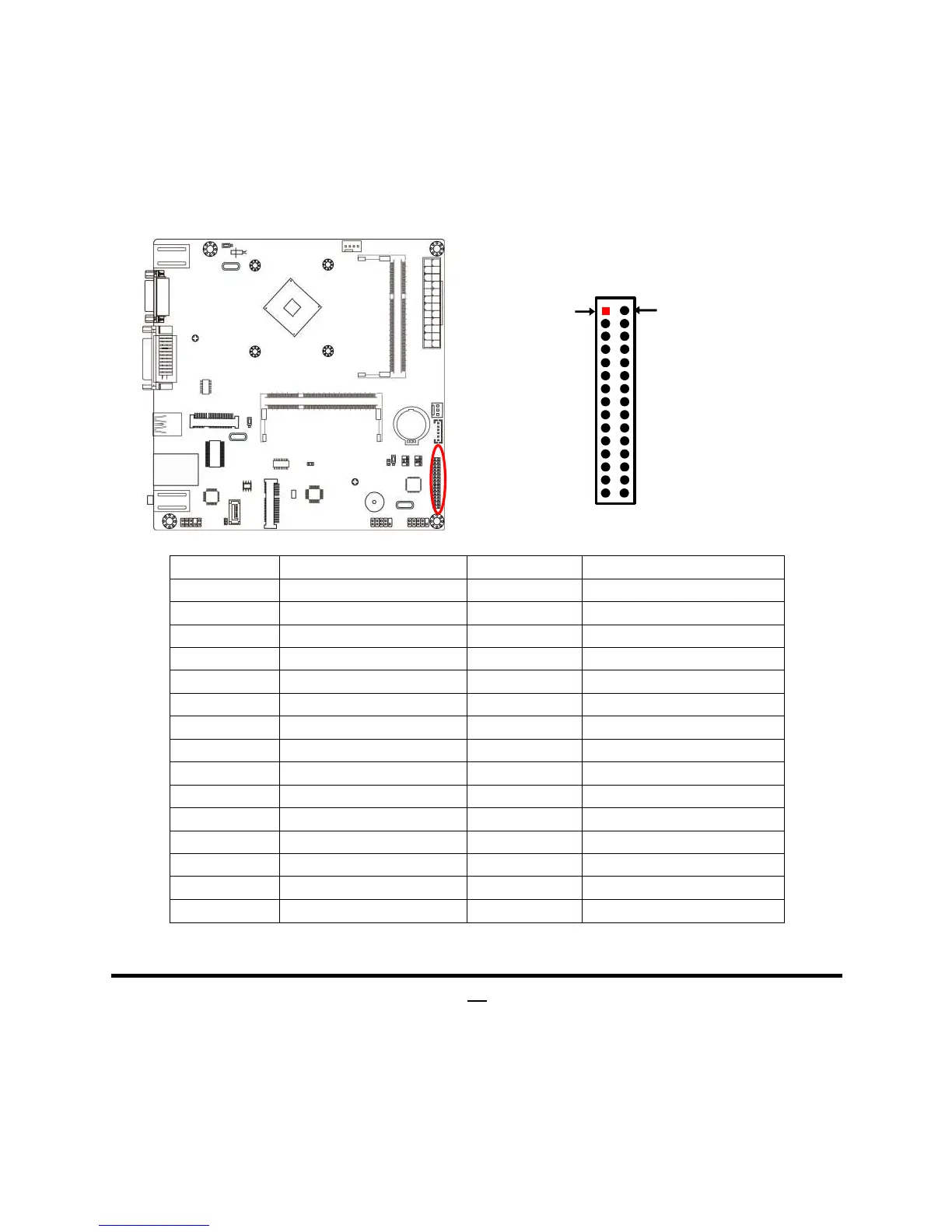

(6) LVDS (30-Pin): 24-bit dual channel LVDS Header
Pin 1
Pin2
Pin NO. Pin Define Pin NO. Pin Define
Pin 1 LVDS_VCC Pin 2 LVDS_VCC
Pin 3 LVDS_VCC Pin 4 GND
Pin 5 GND Pin 6 GND
Pin 7 LVDSA_DATAN0 Pin 8 LVDSA_DATAP0
Pin 9 LVDSA_DATAN1 Pin 10 LVDSA_DATAP1
Pin 11 LVDSA_DATAN2 Pin 12 LVDSA_DATAP2
Pin 13 GND Pin 14 GND
Pin 15 LVDSA_CLKN Pin 16 LVDSA_CLKP
Pin 17 LVDSA_DATAN3 Pin 18 LVDSA_DATAP3
Pin 19 LVDSB_DATAN0 Pin 20 LVDSB_DATAP0
Pin 21 LVDSB_DATAN1 Pin 22 LVDSB_DATAP1
Pin 23 LVDSB_DATAN2 Pin 24 LVDSB_DATAP2
Pin 25 GND Pin 26 GND
Pin 27 LVDSB_CLKN Pin 28 LVDSB_CLKP
Pin 29 LVDSB_DATAN3 Pin 30 LVDSB_DATAP3
