Intel Bay Trail Series User Manual

4

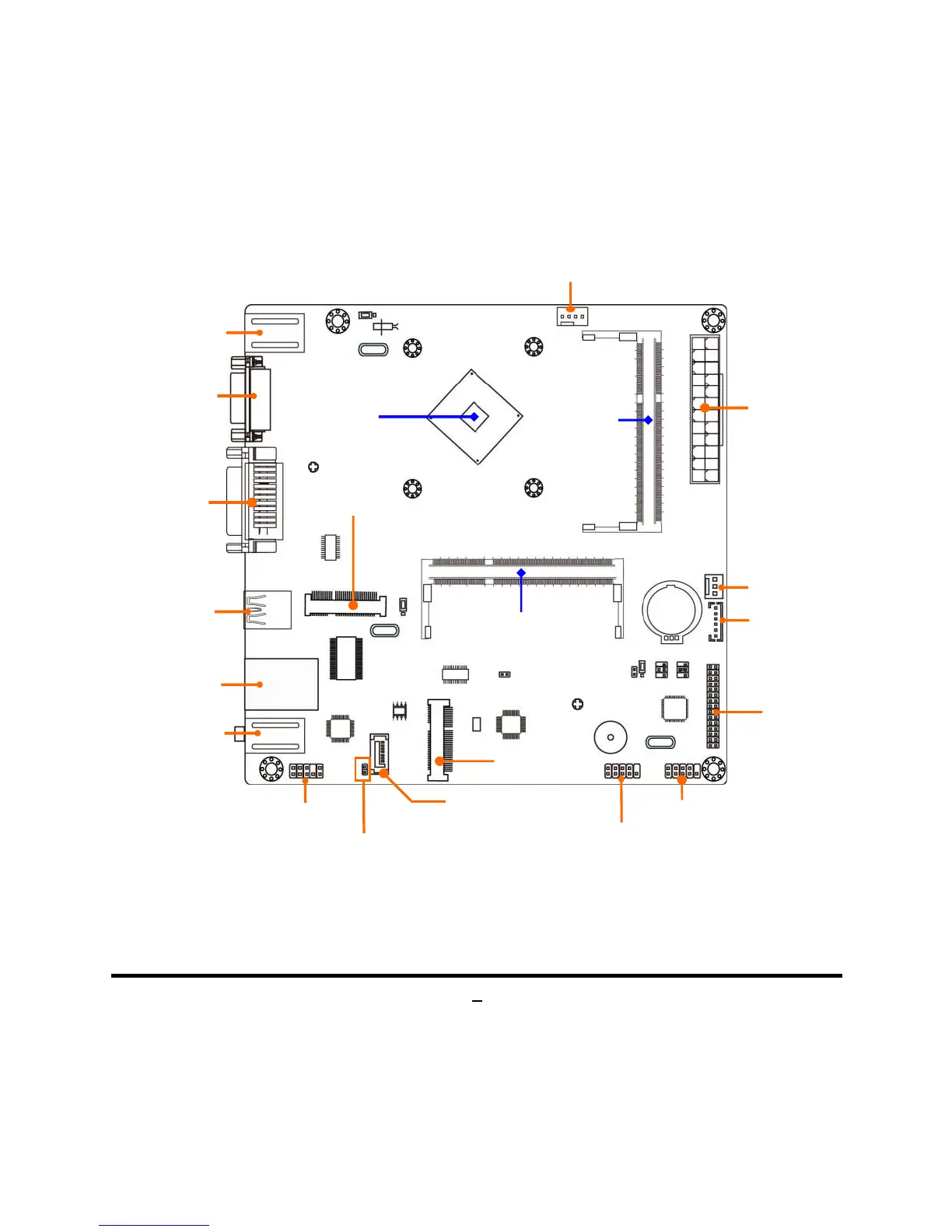

Motherboard Internal Diagram
Note: 1. Priority should be given to SODIMM1 slot when installing only one compatible memory
modules. 2. The module should be DDR3L 1.35V SODIMM and not exceeding 8GB total capacity.
Intel CPU
LVDS Header
Front Panel
Audio Header
Front Panel Header
M-SATA
Hard Disk
Connector
SATAII Port
(SATA2)
PS/2 Keyboard
over
PS/2 Mouse Port
USB 3.0 Port
Audio
Connectors
SYSFAN Header
Full-Size
Mini-PCIE
Connector
CPUFAN Header
Serial Port Header
HDMI_SPDIF
Header
VGA Port
DVI-D Port
USB 2.0 Ports
ATXPWR
Main
Power connector
LVDS Inverter
DDR3L
SODIMM Slot
(SODIMM1)
DDR3L
SODIMM Slot
(SODIMM2)

Intel Bay Trail Series Specifications

General

Memory Type	DDR3L
Max Memory Size	8 GB
Graphics Output	HDMI, DisplayPort, VGA
USB Ports	USB 3.0, USB 2.0
SATA Ports	SATA 3.0
PCI Express Revision	2.0
TDP	4.5-10 W
Chipset	Integrated
