Intel Desktop Board D975XBX2 Product Guide
32

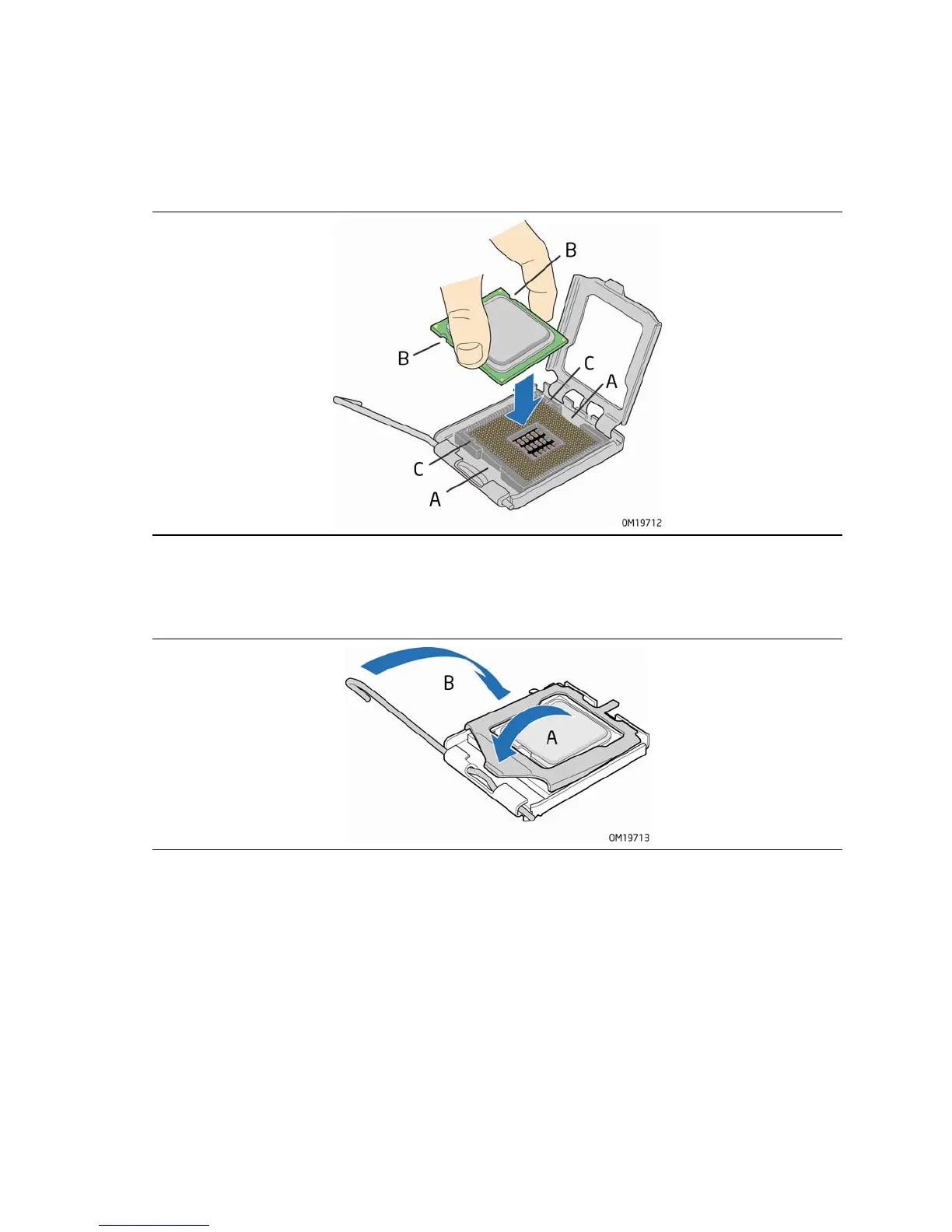

6. Hold the processor with your thumb and index fingers oriented as shown in
Figure 11. Make sure fingers align to the
socket cutouts (Figure 11, A) Align
notches (Figure 11, B) with the socket (Figure 11, C). Lower the processor straight
dow
n without tilting or sliding it in the socket.
Figure 11. Install the Processor
7. While pressing down on the load plate (Figure 12, A), close and engage the socket
lever (Figure 12, B).
Figure 12. Close the Load Plate
