Installing and Replacing Desktop Board Components
39
Installing a PCI Express x16 Card
If you are installing a sing
le PCI Express Graphics card, install
it in PCI Express
connector 1 (see Figure 19, A
) for optimum performance. However, if
you are
installing two PCI
Express Gr
aphics cards, install them in PCI Express c
onnectors 1
and 2 (see
Figure 19, B).

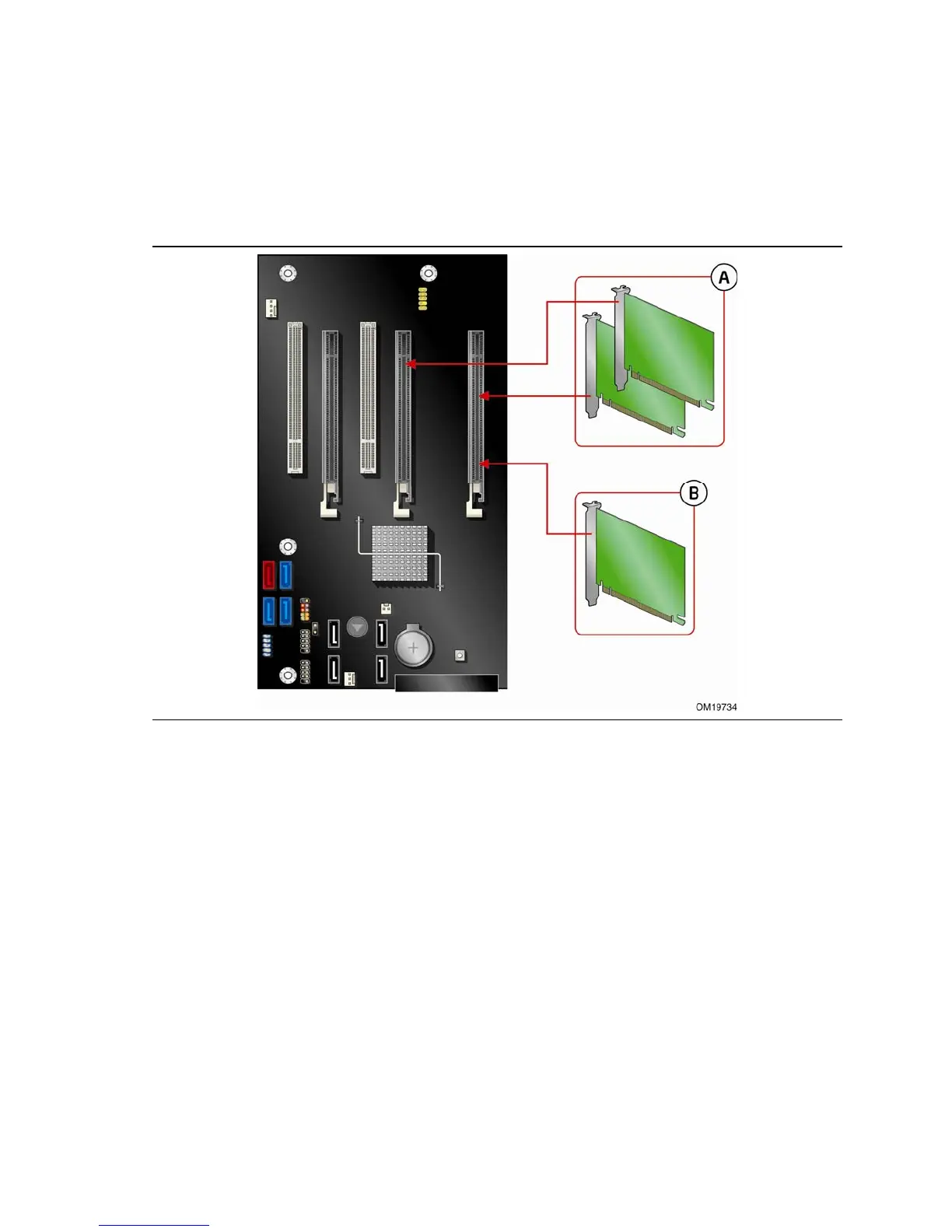

Figure 19. Installing PCI Express Graphic
s Cards
