Installing and Replacing Desktop Board Components
33
Installing the Processor Fan Heat Sink
Desktop Board D975XBX2 has an integrated processor fan heat sink retention
mechanism (RM). For instructions on how to attach the processor fan heat sink to the
integrated processor fan heat sink RM, refer to the boxed processor manual or the
Intel World Wide Web site at:
Integration of the Boxed Intel
®
Pentium
®
4 Processor in the 775-Land Package
Connecting the Processor Fan Heat Sink Cable
Connect the processor fan heat sink cable to the 4-pin processor fan header (see
Figure 13). A fan with a 4-pi
n connector as shown in Figure 13, A is recommended;
however, a fan with a 3-pin connector (Figure 13, B) can be used. Since the 3-pin fan
can
not use the on-board fan control, the fan will always operate at full speed.

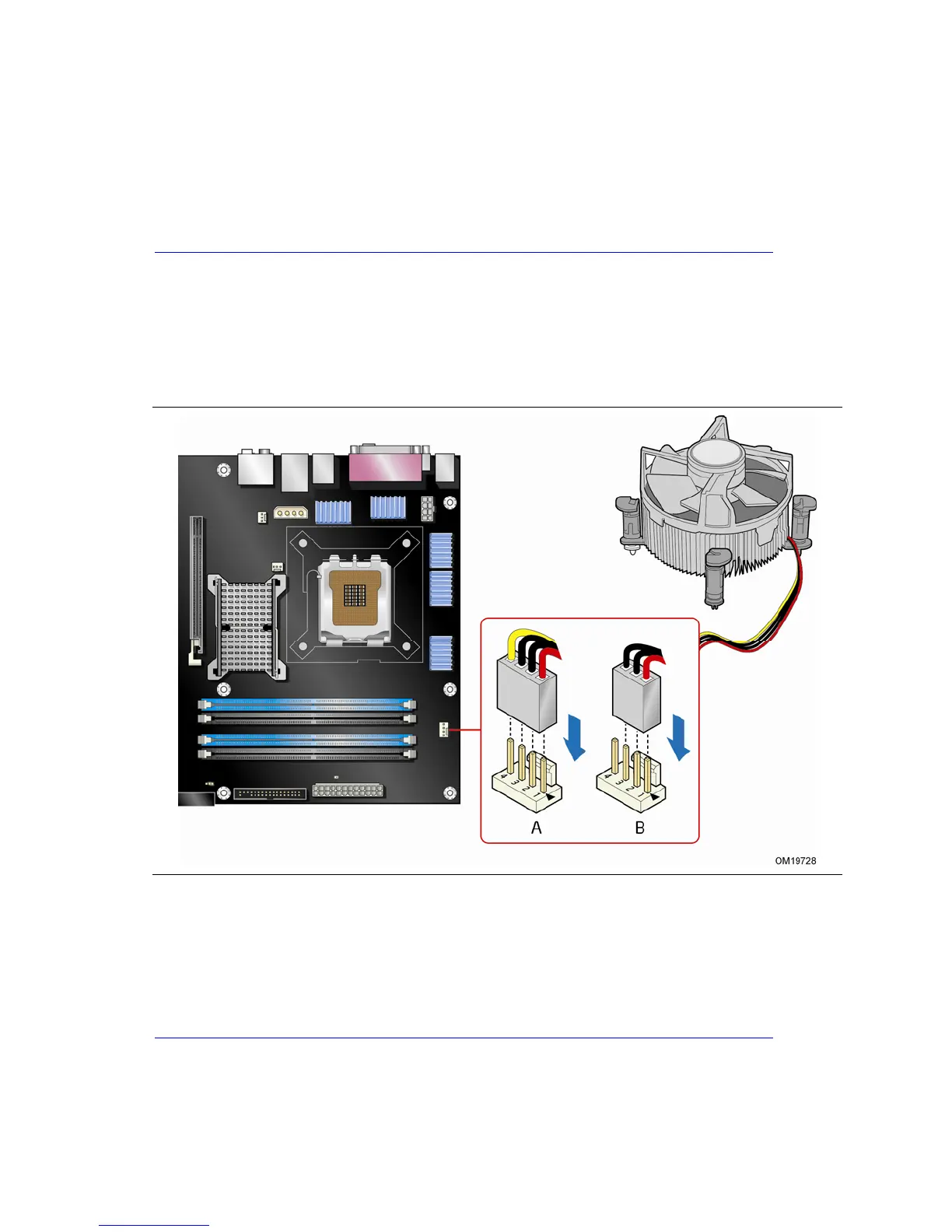

Figure 13. Connecting the Processor Fan Heat Sink Cable to the
Processor Fan Header
Removing the Processor
For instructions on how to remove the processor fan heat sink and processor, refer to
the processor installation manual or the Intel World Wide Web site at:
Integration of the Boxed Intel
®
Pentium
®
4 Processor in the 775-Land Package
