Installing and Replacing Desktop Board Components
47
Installing the Rear Panel USB 2.0 Adapter
Follow these instructions to install the rear panel USB 2.0 adapter (see Figure 25):
1. Observe the precautions in "Before You Begin" on page 25.
2. Attach
the connector at the end of the adapter cable to the USB 2.0 header on the
desktop board.
3. Secure the metal bracket at the other end of the adapter to the chassis back panel
with a screw.

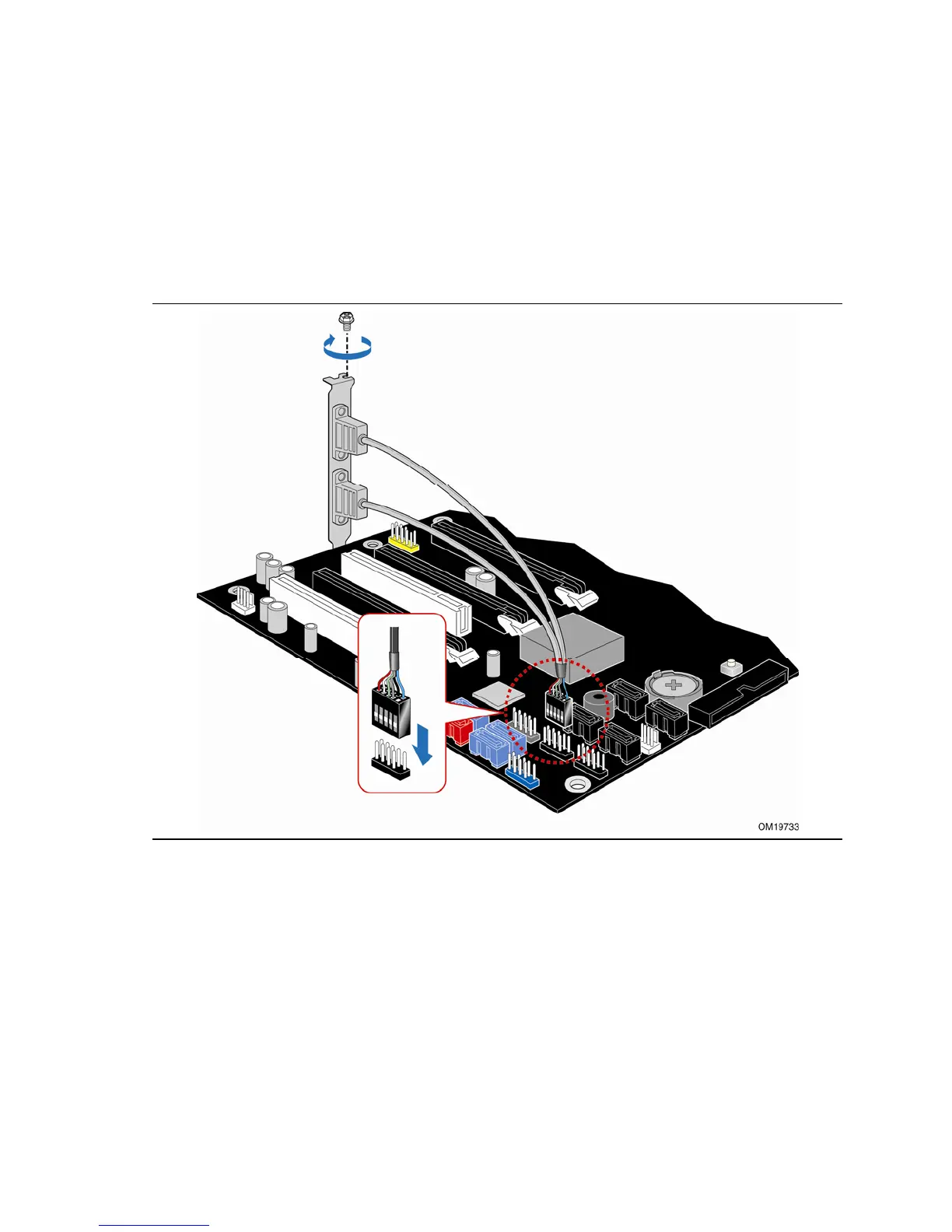

Figure 25. Connecting the Rear Panel USB 2.0 Adapter
