Intel Desktop Board D975XBX2 Product Guide
40
Follow these instructions to install any PCI Express x16 card:
1. Observe the precautions in "Before You Begin" on page 25.
2. Place the card in the PCI E
xpress x16 connector (Figure 20, A) and press down on
t
he card until it is completely seated in the connector and the card retention notch
snaps into place around the RM pin.
3. Secure the card’s metal bracket to the chassis back panel with a screw
(Figure 20, B).

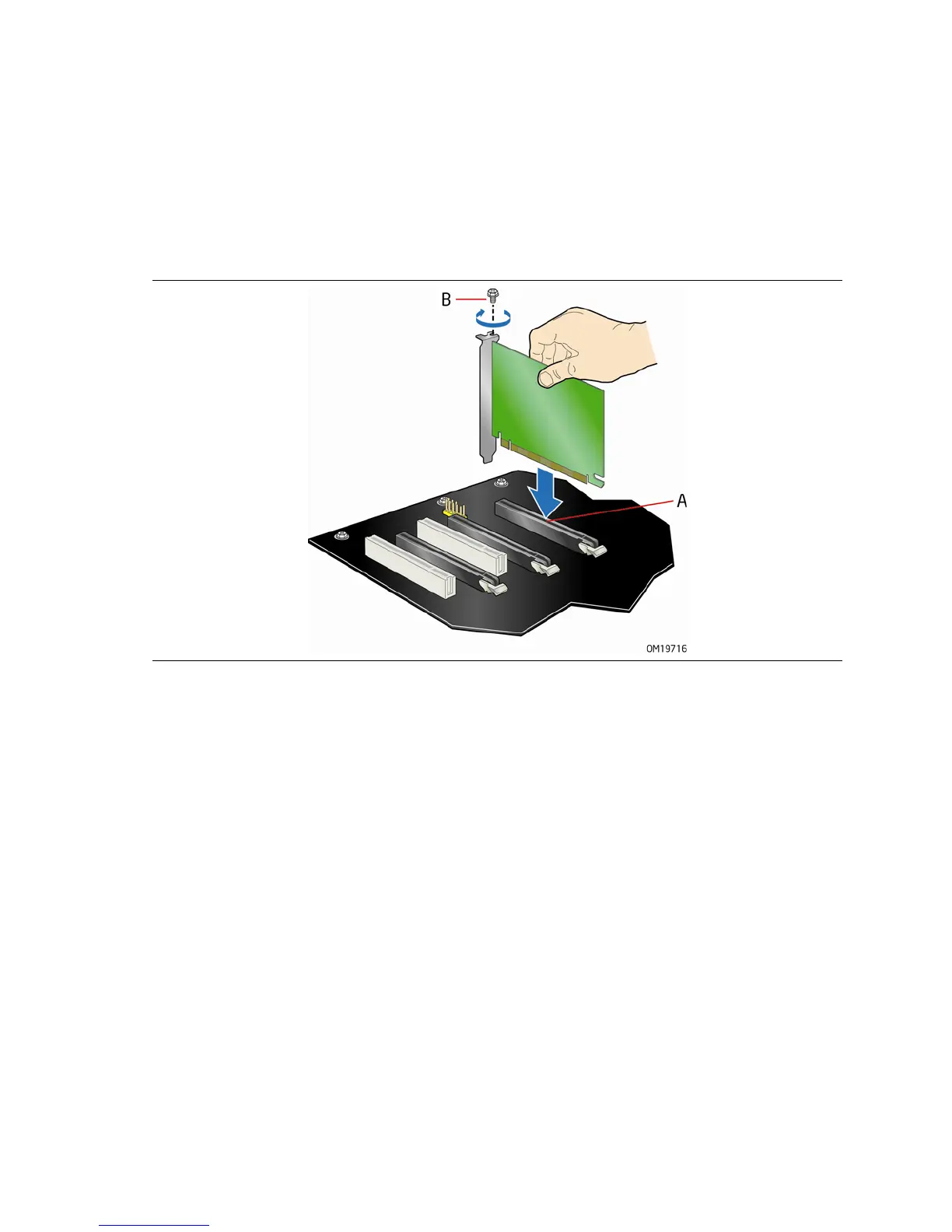

Figure 20. Installing a PCI Express x16 Card
