1.12.4 Thermal Monitoring
Figure 6 shows the locations of the thermal sensors and fan headers.
Item Description
A Rear chassis fan header
B Thermal diode, located on the processor die
C Thermal diode, located on the GMCH die
D Processor fan header
E Thermal diode, located on the ICH7 die
F Front chassis fan header

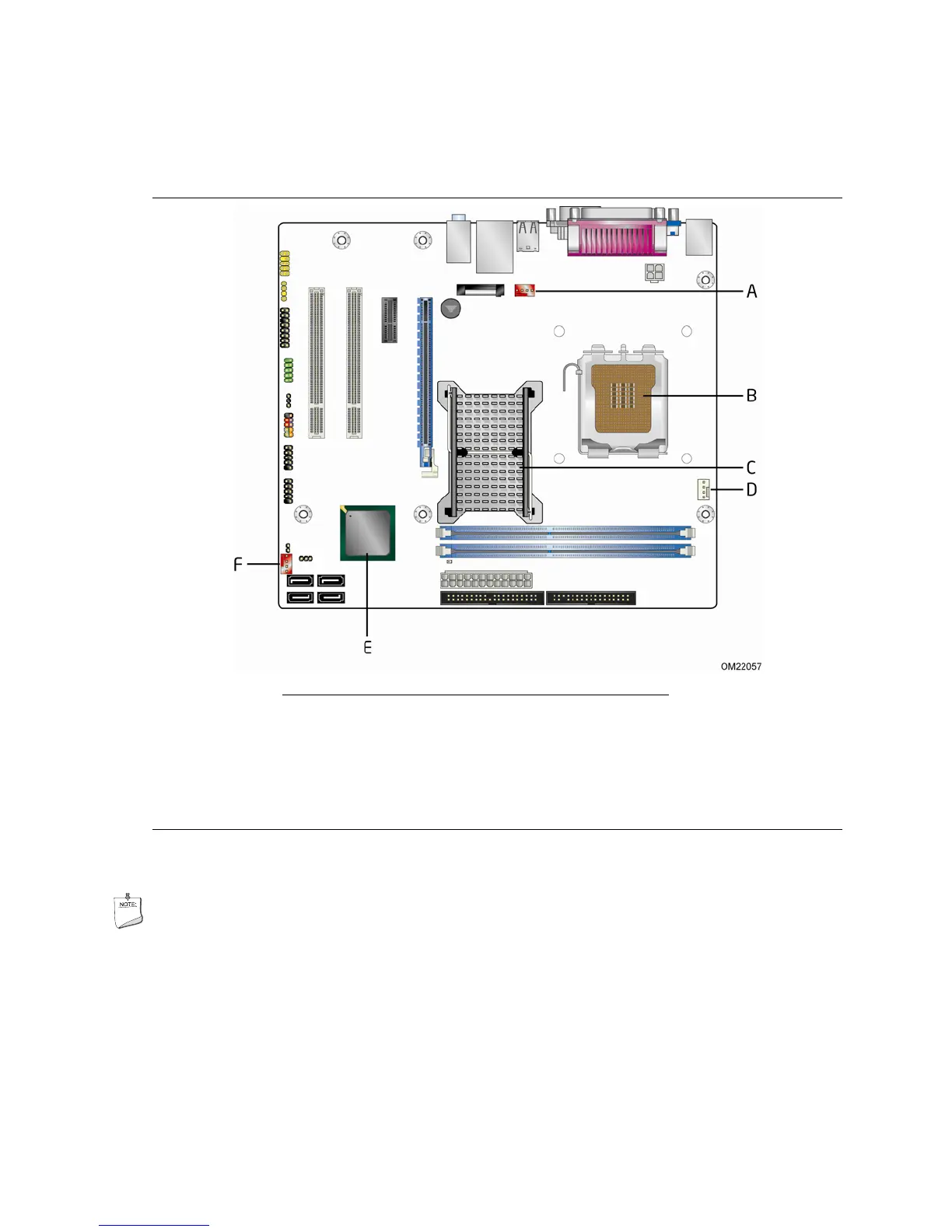

Figure 6. Thermal Sensors and Fan Headers
NOTE
The minimum thermal reporting threshold for the GMCH is 66 °C. The GMCH thermal
sensor will display 66 °C until the temperature rises above this point.
