Intel BLKDG41TX - Back Panel Connectors

Technical Reference
43
2.2.1 Back Panel Connectors
Figure 9 shows the locations of the back panel connectors.
Item Description
A PS/2 keyboard/mouse port
B PS/2 keyboard/mouse port
C VGA output
D Parallel port
E DVI-D output
F USB ports (2)
G LAN
H
USB ports (2)
I Line in
J Line out
K Mic in

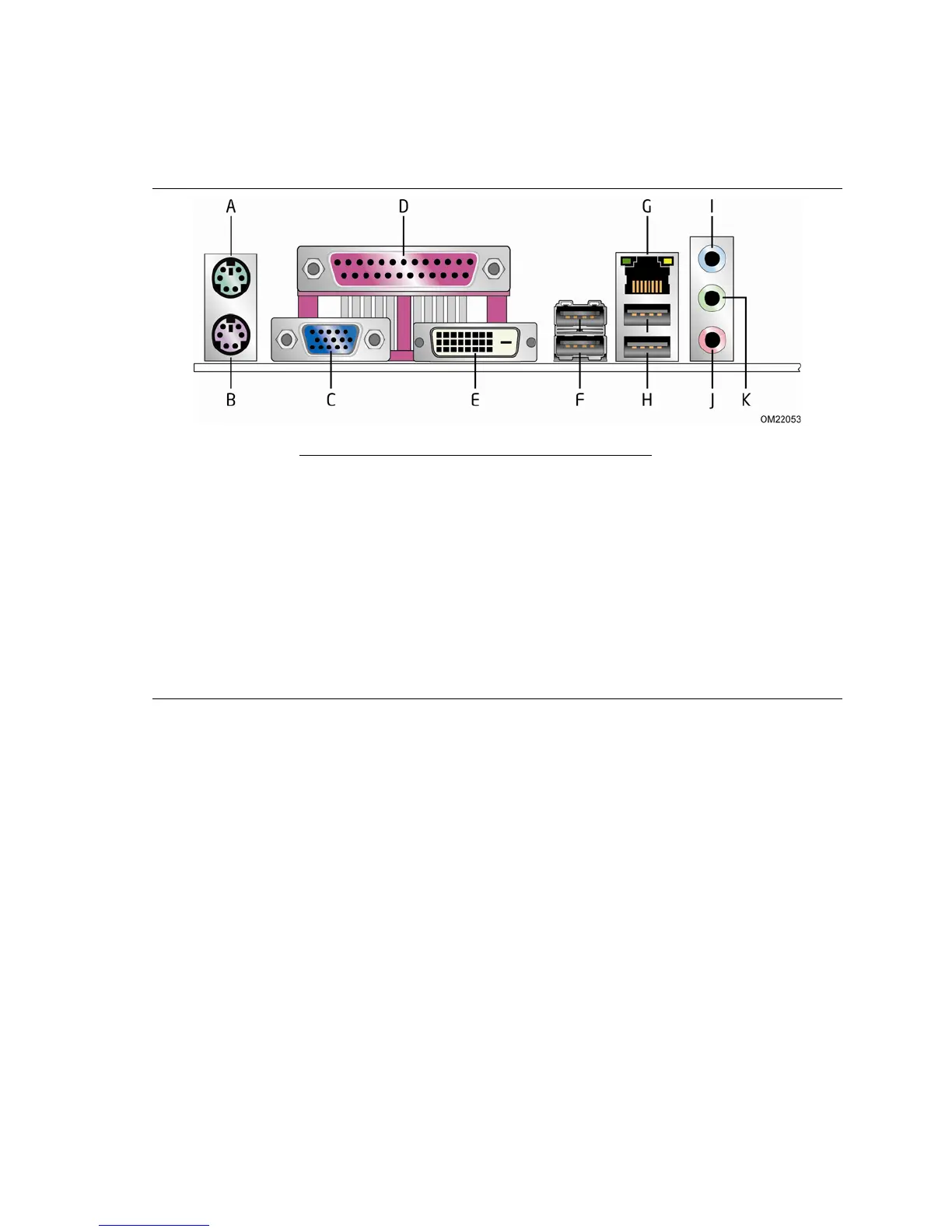

Figure 9. Back Panel Connectors
