Intel Desktop Board DG41TX Technical Product Specification
52
2.2.2.6 Front Panel USB Headers
Figure 12 is a connection diagram for the front panel USB headers.
NOTES
The +5 V DC power on the front panel USB headers is fused.
Use only a front panel USB connector that conforms to the USB 2.0 specification for
high-speed USB devices.

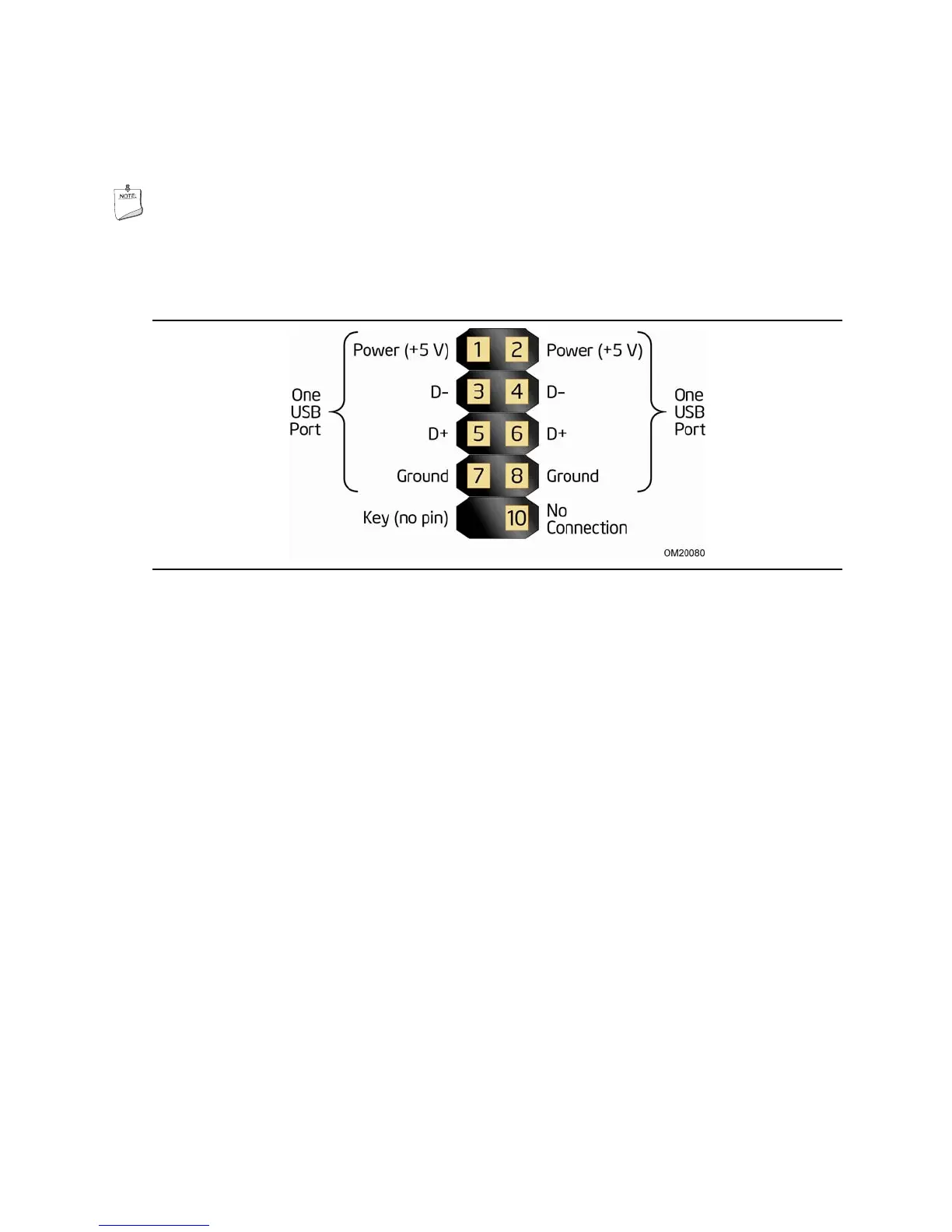

Figure 12. Connection Diagram for Front Panel USB Headers
