Intel Desktop Board DG41TX Technical Product Specification
58
CAUTION
Ensure that proper airflow is maintained in the processor voltage regulator circuit.
Failure to do so may result in damage to the voltage regulator circuit. The processor
voltage regulator area (shown in Figure 15) can reach a temperature of up to 95
o
C in
an open chassis.

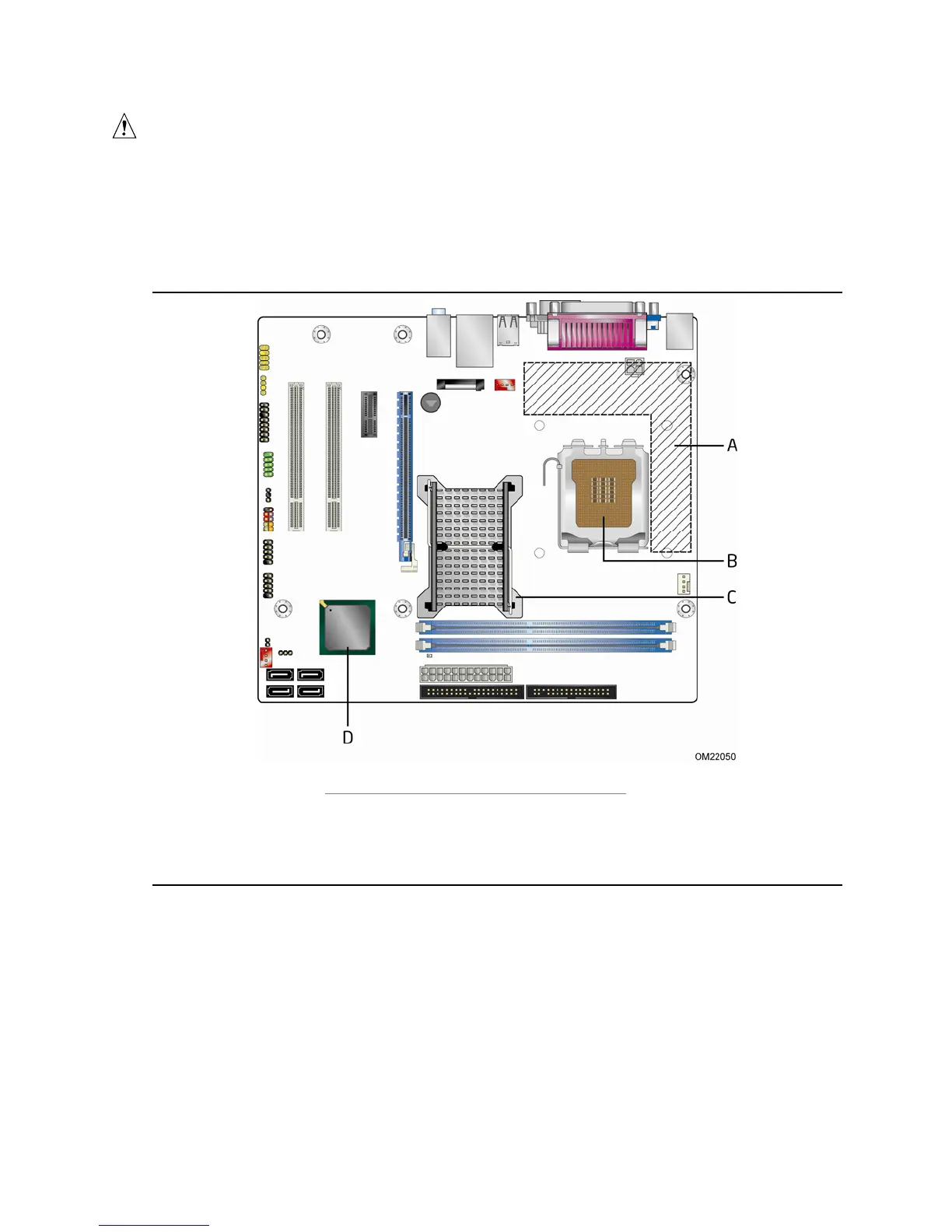

Figure 15 shows the locations of the localized high temperature zones.
Item Description
A Processor voltage regulator area
B Processor
C Intel
82G41 GMCH
D Intel
82801GB (ICH7)
Figure 15. Localized High Temperature Zones
