Intel Desktop Board DP55WG Product Guide
12
Desktop Board Components

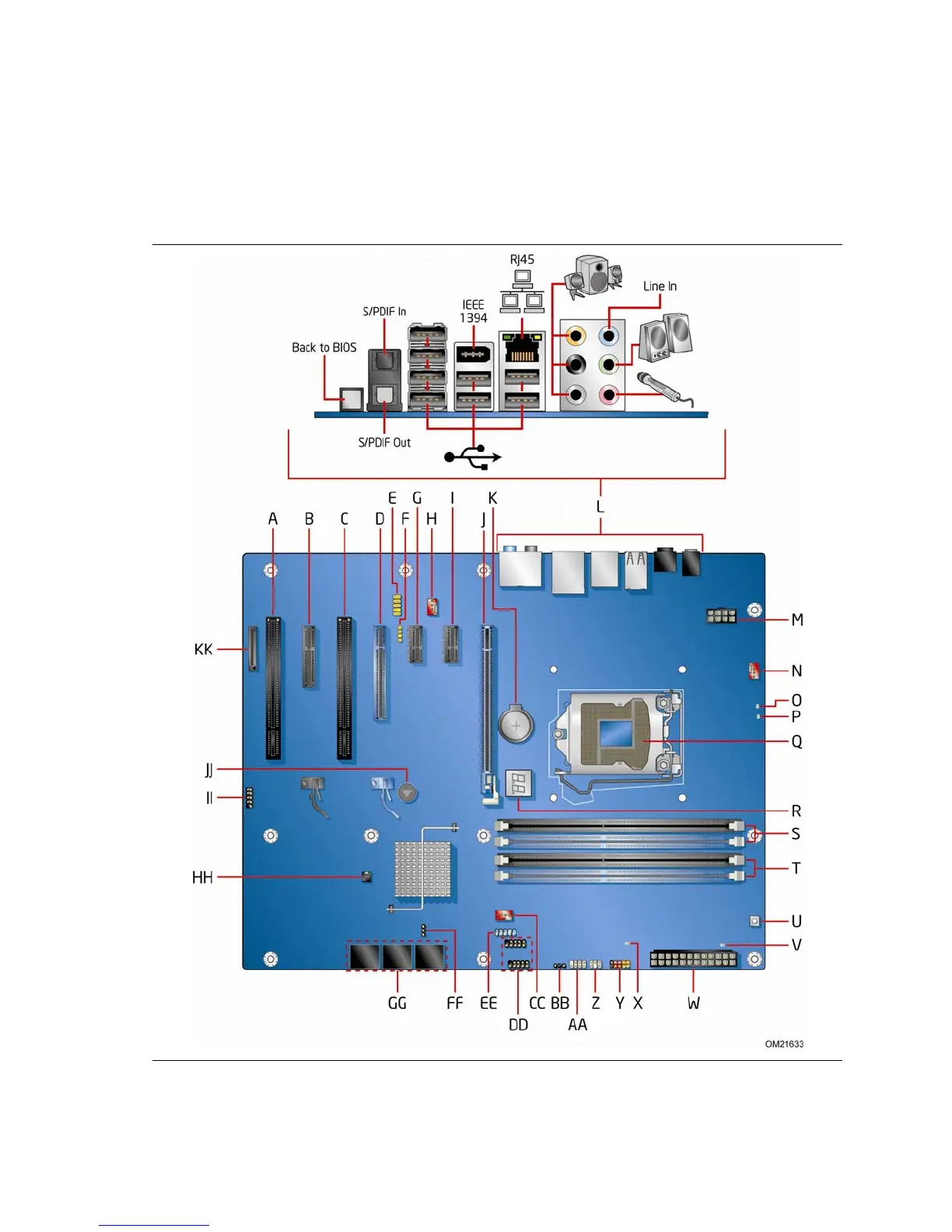

Figure 1 shows the approximate location of the major components on Intel Desktop
Board DP55WG.
Figure 1. Intel Desktop Board DP55WG Components
