Intel Desktop Board DP55WG Product Guide
46
6.
Con
nect the monitor cable to the g
raphics
card according to the manufacturer’s
instructions.

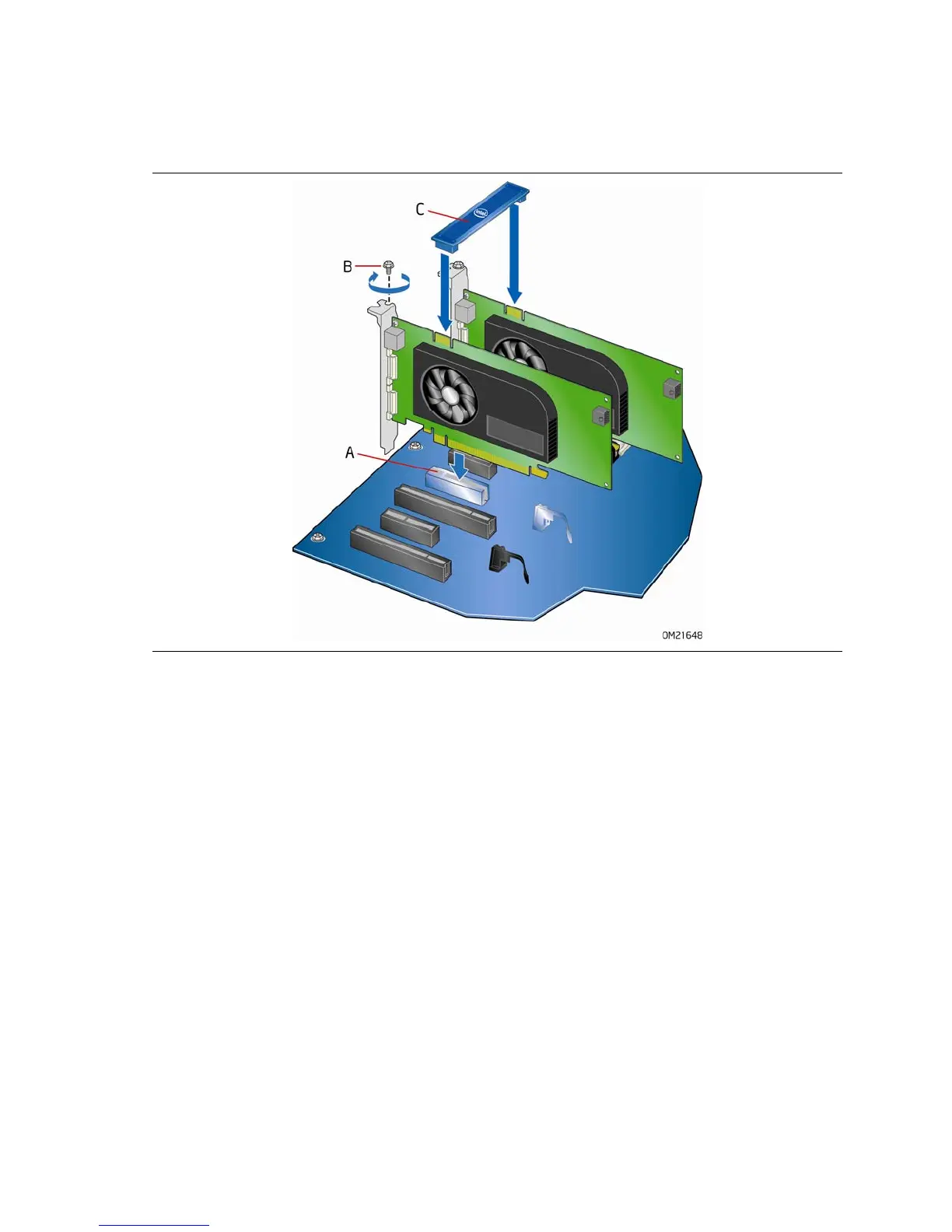

Figure 25. Installing Linked PCI
Express Graphics Cards
For more complete installation an
d configuration information
refer to the
documentation supplied by the graphics card
manufac
turer or visit their websi
t
e.
