Intel Desktop Board DP55WG Product Guide
48
Connecting to the Internal Headers
Before connecting cables to any of the inte
rnal headers, observ
e the precautions in
“
Before You Begin” on page
29.
Figure 27 sho
ws the location of the internal headers
and co
nnectors on Intel
Desktop Board DP55W
G.

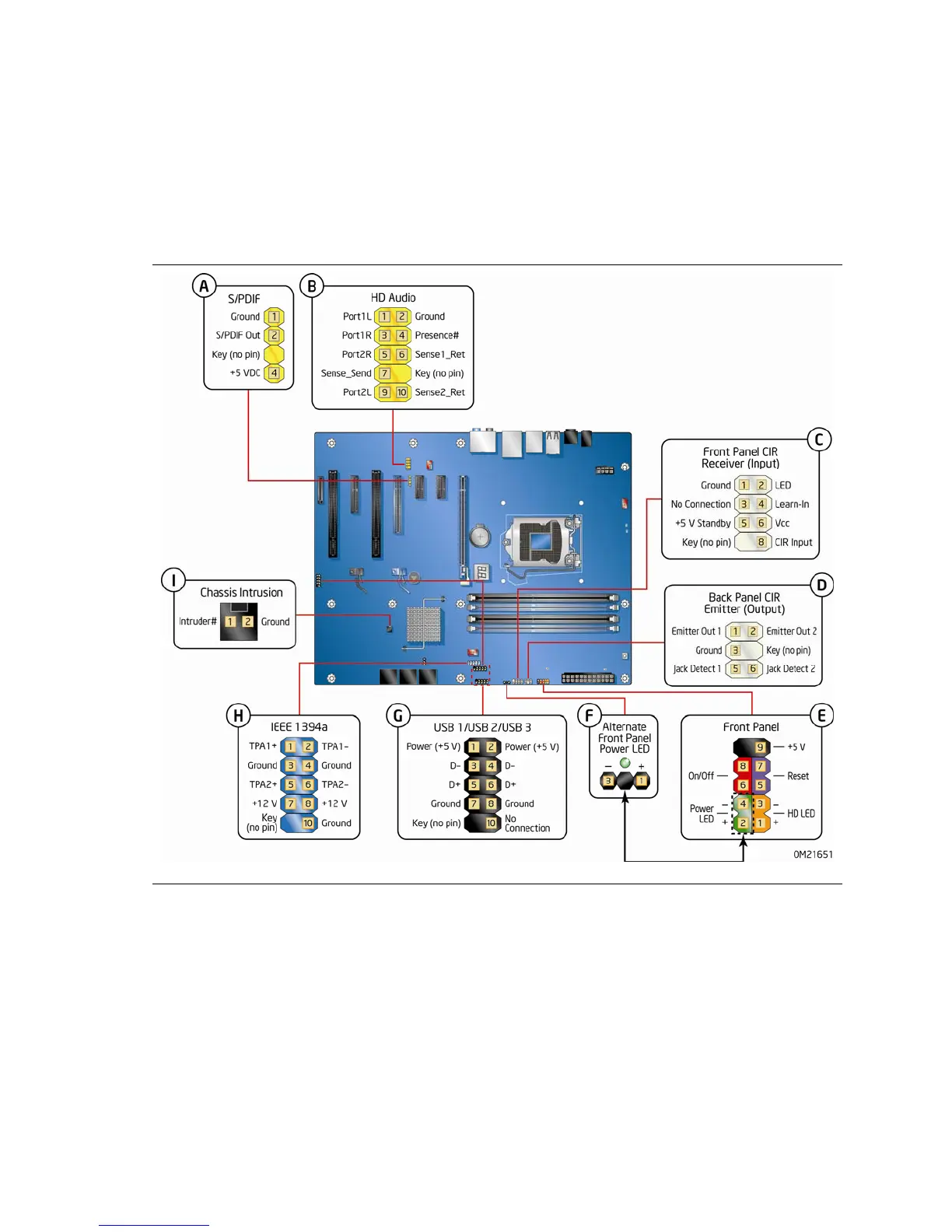

Figure 27. Internal Headers
47
49
