Intel BOXDP55WG

Installing and Replacing Desktop Board Components
41
Installing DIMMs
To make sure you have the correct DIMM, place it on the illustration of the DDR3
DIMM in Figure 21. All the notches should match with the DDR3 DIMM.

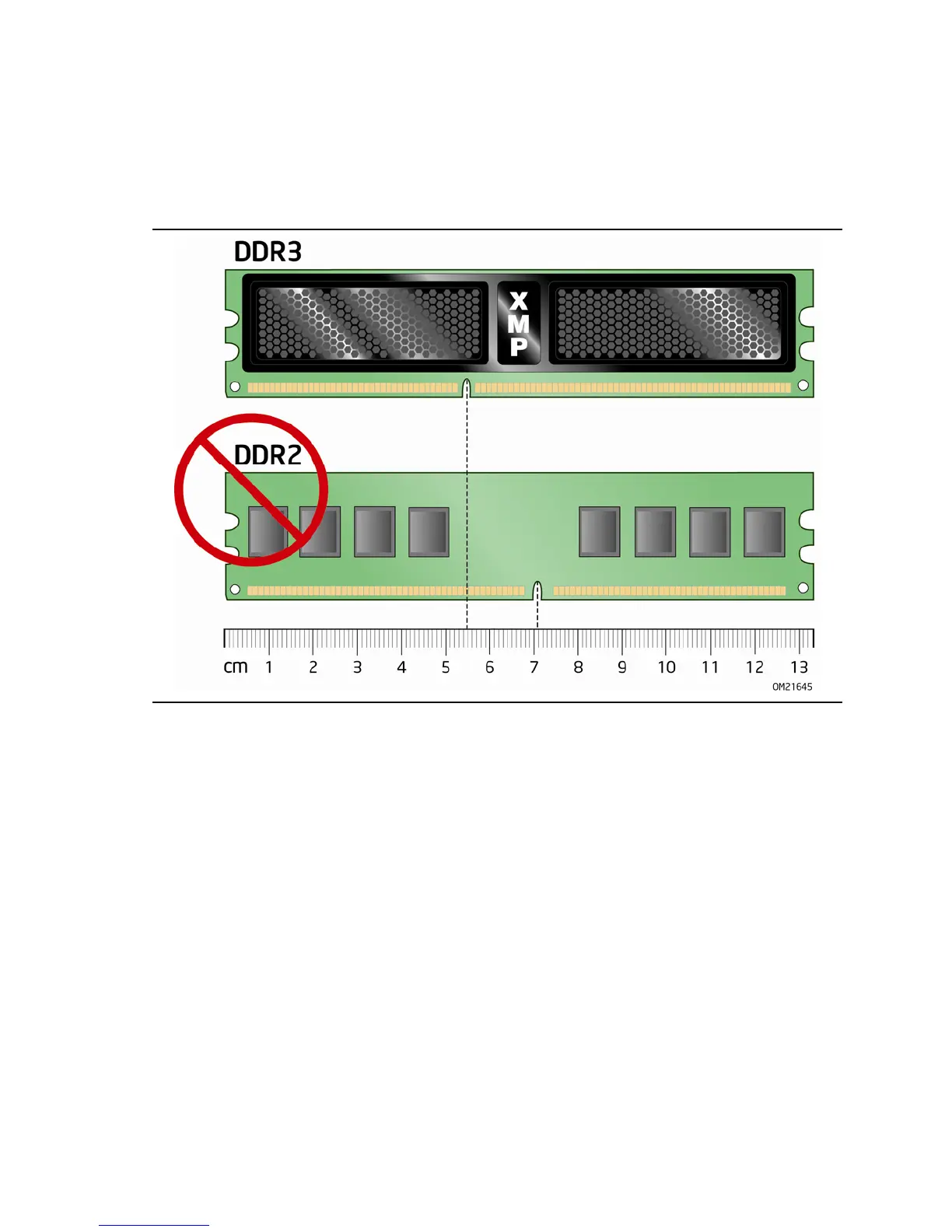

Figure 21. Use DDR3 DIMMs
