Intel Desktop Board DP55WG Product Guide
34
3.
Rotate t
he socket lever to lift the load pl
ate away from the socket (
Figu
re 11, A).
Make sure that th
e load plate is in the fully open
position (
Figure 11, B) while being
careful not
to damage adjacent components.

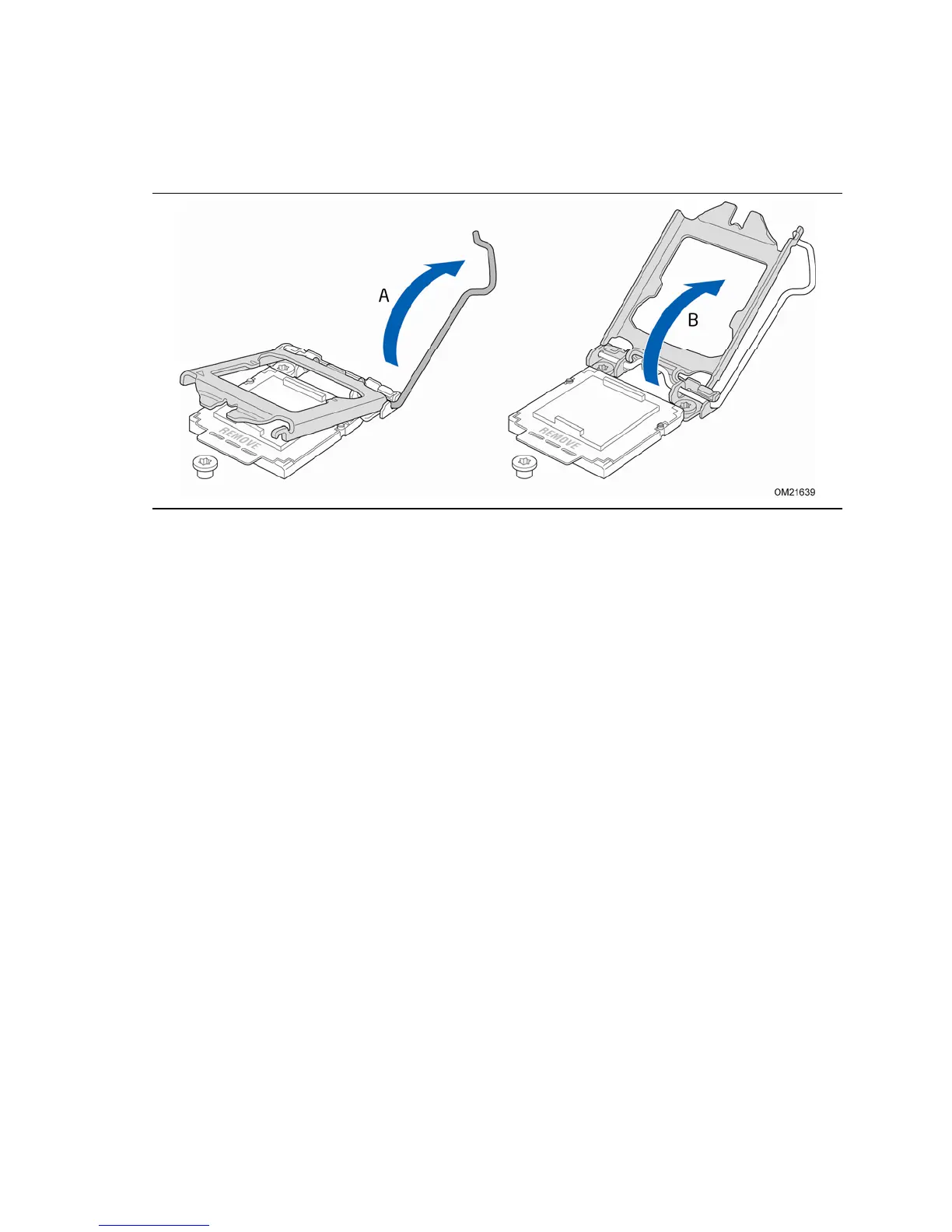

Figure 11. Lift the Lo
ad Plate
33
35
