Error Messages and Indicators
73
Port 80h POST Codes
During the POST, the BIOS generates diagno
stic progress codes (POST codes)
to I/O
port 80h. If the POST fa
ils, execution stops an
d the last POST code g
enerated is left
at port 80h and displayed on the Deskto
p Board’s seven-segment LED display shown
in
Figure 33. This code is useful
for de
termining the point wh
ere an e
rror occurred
during the POST.

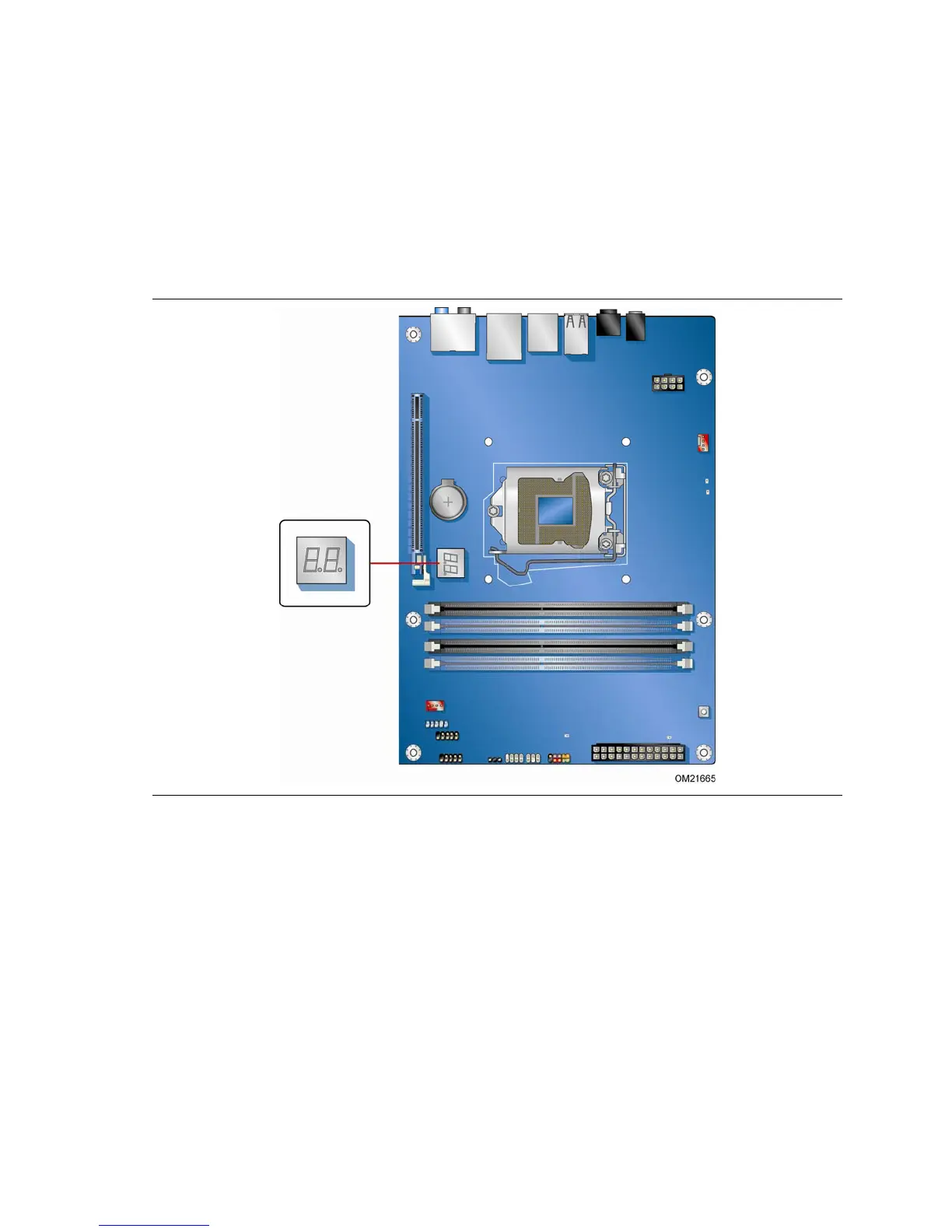

Figure 33. Location
of the POST Code LED Di
splay
