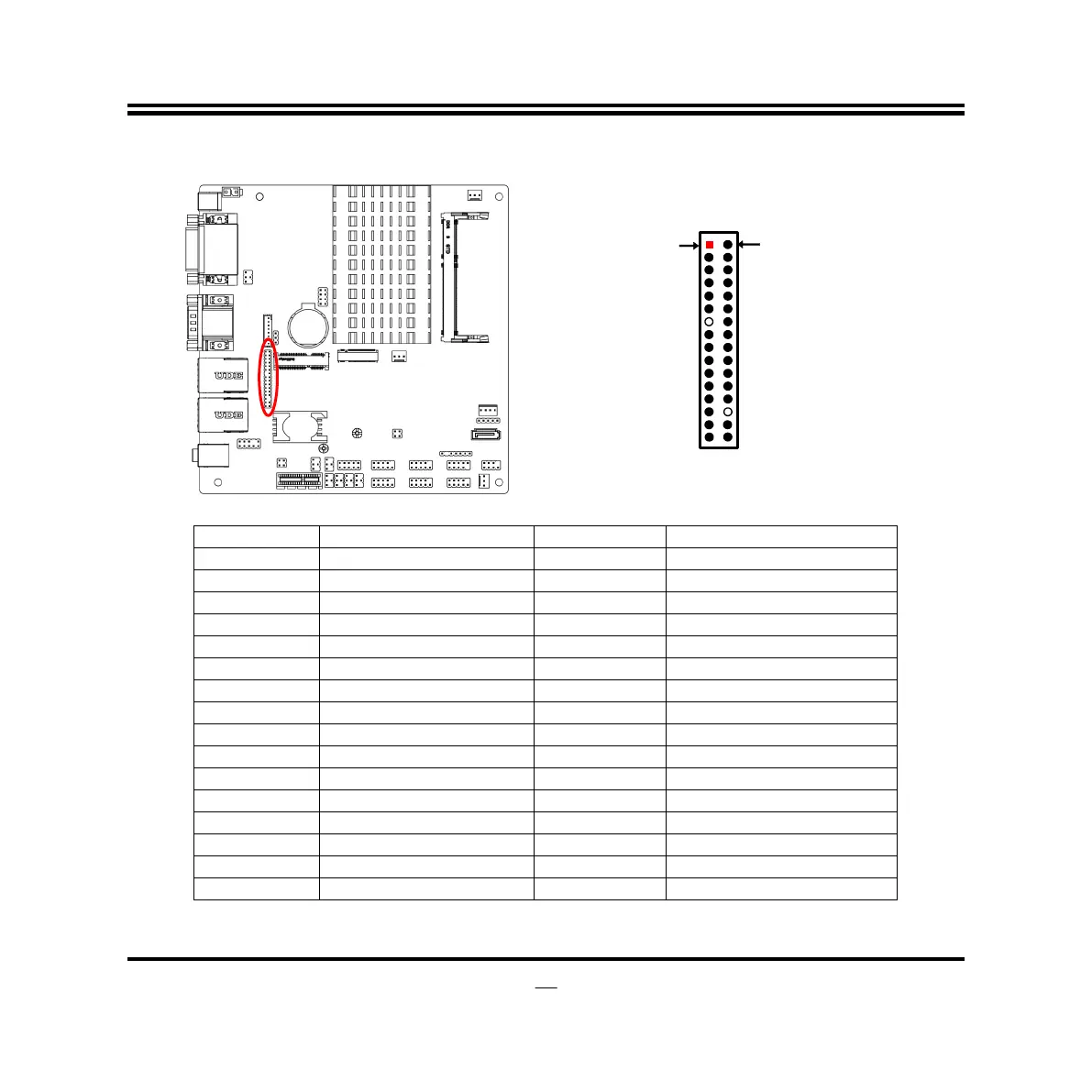

(11) LVDS (30-pin): 24-bit Dual Channel LVDS Header
(2.0 pitch)
Pin 1
Pin2
Pin NO.
Pin Define
Pin NO.
Pin Define
Pin 1
LVDSB_DATAN3
Pin 2
LVDSB_DATAP3
Pin 3
LVDS_CLKBN
Pin 4
LVDS_CLKBP
Pin 5
LVDSB_DATAN2
Pin 6
LVDSB_DATAP2
Pin 7
LVDSB_DATAN1
Pin 8
LVDSB_DATAP1
Pin 9
LVDSB_DATAN0
Pin 10
LVDSB_DATAP0
Pin 11
LVDS_DDC_DAT
Pin 12
LVDS_DDC_CLK
Pin 13
N/A
Pin 14
GND
Pin 15
GND
Pin 16
GND
Pin 17
LVDSA_DATAP3
Pin 18
LVDSA_DATAN3
Pin 19
LVDS_CLKAP
Pin 20
LVDS_CLKAN
Pin 21
LVDSA_DATAP2
Pin 22
LVDSA_DATAN2
Pin 23
LVDSA_DATAP1
Pin 24
LVDSA_DATAN1
Pin 25
LVDSA_DATAP0
Pin 26
LVDSA_DATAN0
Pin 27
PVDD
Pin 28
N/A
Pin 29
PVDD
Pin 30
PVDD
Pin 31
GND
Pin 32
GND
