Intel Braswell Series User Manual

21

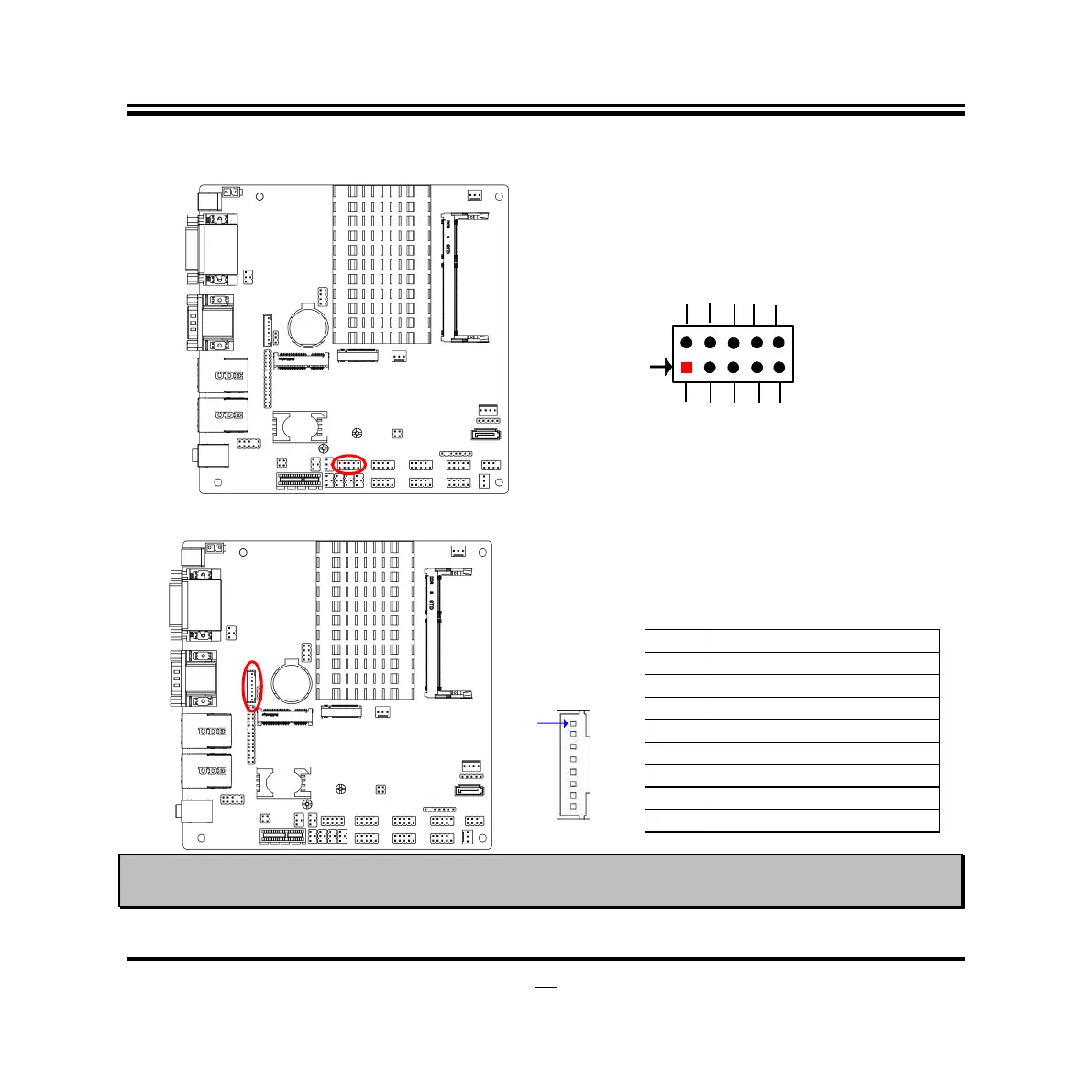

(9) GPIO_CON (10-pin): GPIO Header
(2.54 pitch)
GPIO80
Pin1
2
GPIO82
GPIO84
GPIO86
GND
GPIO81
GPIO83
GPIO85
GPIO87
VCC
(10) INVERTER (8-pin): LVDS Inverter Connector
(2.0 pitch)
Pin1
Pin No.
Definition
1
Backlight Enable
2
Backlight PWM
3
Backlight VCC
4
Backlight VCC
5
GND
6
GND
7
Backlight Brightness Up SW
8
Backlight Brightness Down SW
Warning! Find Pin-1 location of the inverter and make sure that the installation direction is correct!
Otherwise serious harm will occur to the board/display panel!!
