20

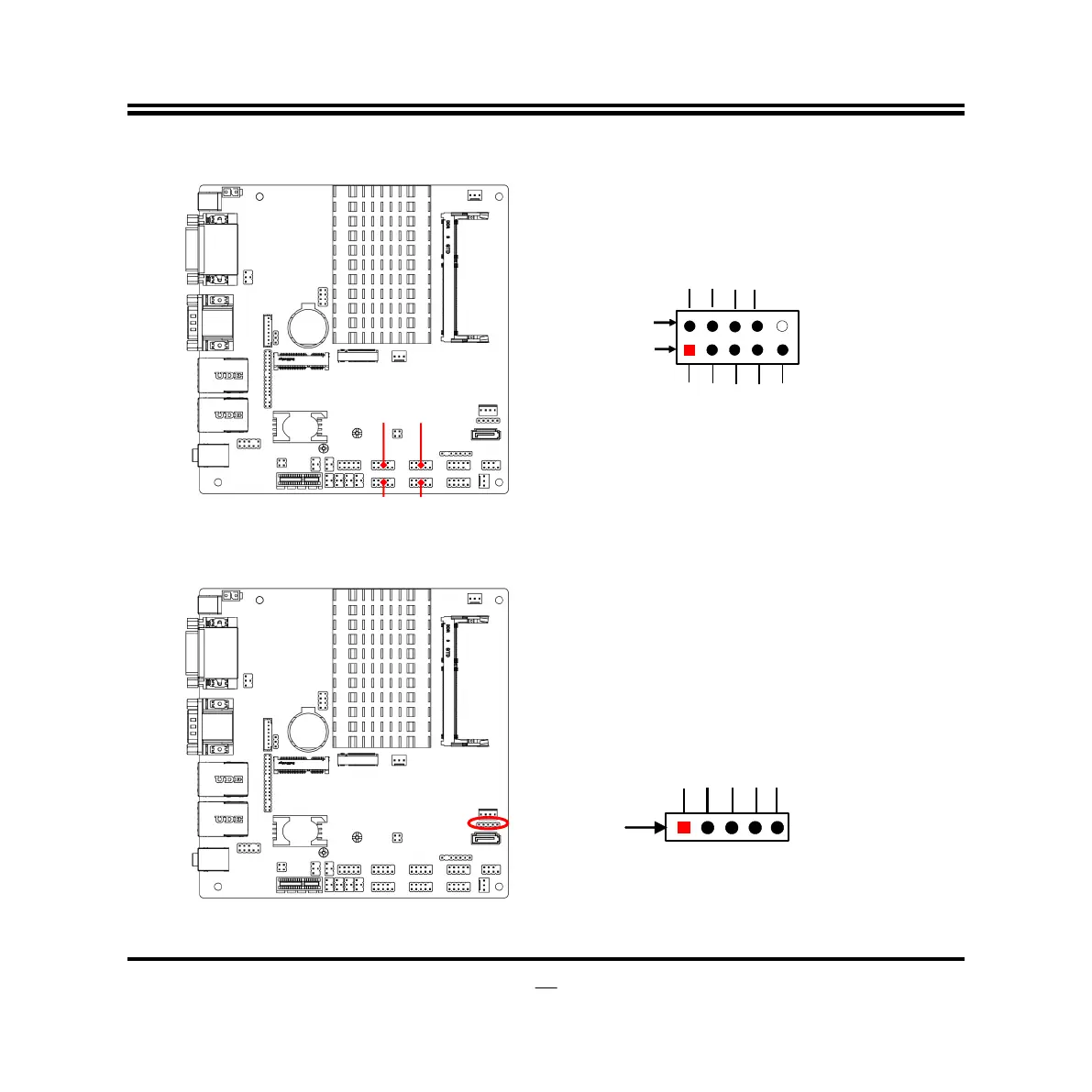

(7) COM3/4/5/6 (9-pin): Serial Port Header
(2.54 pitch)
DCD#
Pin1
Pin6
SIN
SOUT
DTR#
GND
DSR#
RTS#
CTS#
RI#
(8) SMBUS (5-Pin): SM BUS Header
(2.54 pitch)
SMBUS_CLK
3VSB
Pin1
SMBUS_DATA
GND
NC
COM3
COM4
COM5
COM6
