英特尔台式机主板 D525MW 产品指南
安装 I/O 防护板
随本台式机主板提供了一块 I/O 防护板。在机箱内安装此防护板后,可阻挡无线电射频的传播
保护内置组件不受灰尘和异物侵害,并可使机箱内的气流保持畅通。
在向机箱中安装本台式机主板之前,应先安装 I/O 防护板。如 5 所示,将防护板放入机箱内。
将防护板按入到位,使其紧密牢固地就位。如果防护板不适合机箱的尺寸,请从机箱供应商处获
尺寸合适的防护板。

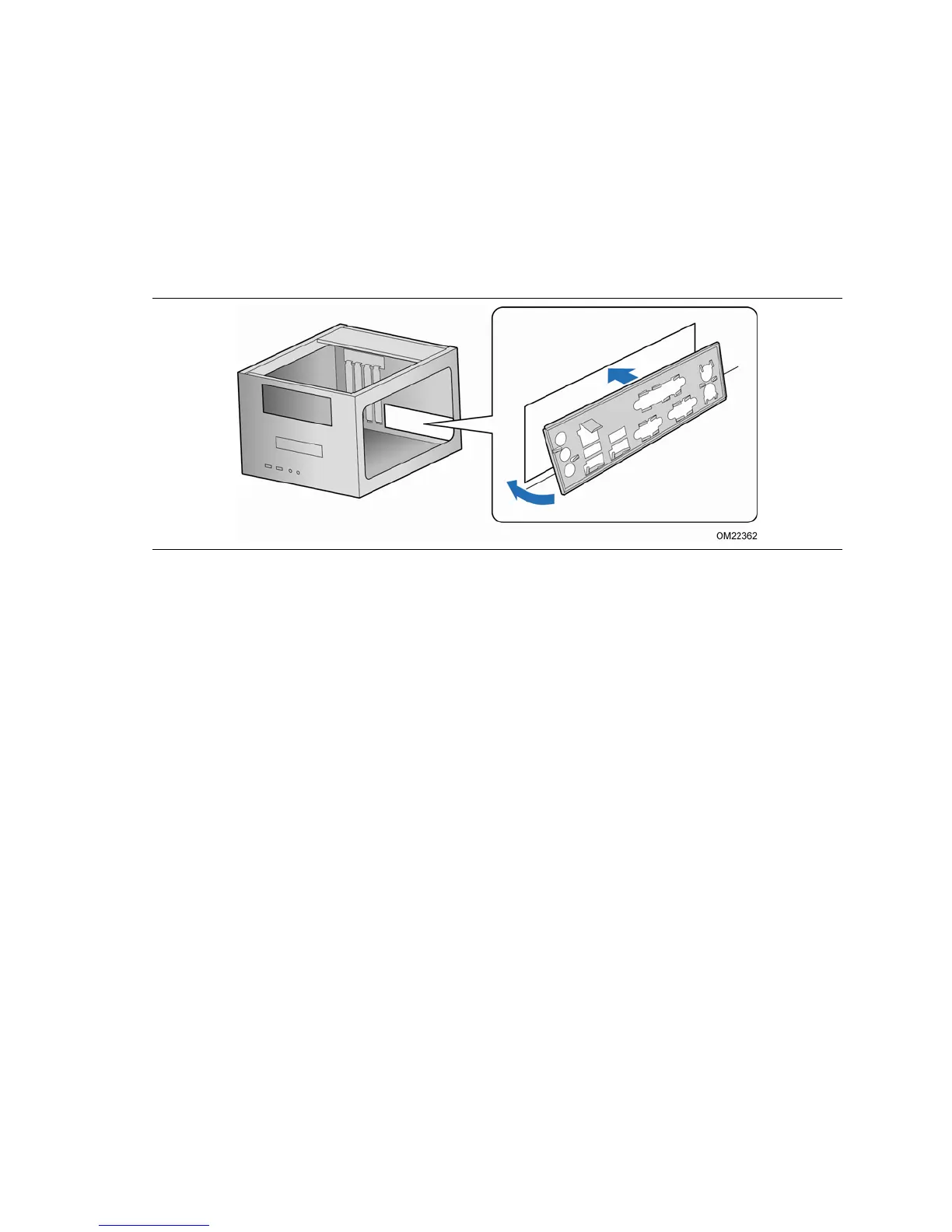

5. 安装 I/O 防护板
26
