Intel Desktop Boards D845HV and D845WN Product Guide
22
Installing the I/O Shield
The board comes with an I/O shield. When installed in the chassis, the shield blocks radio
frequency transmissions, protects internal components from dust and foreign objects, and promotes
correct airflow within the chassis.
Install the I/O shield before installing the board in the chassis. Place the shield inside the chassis
as shown in Figure 4. Press the shield into place so that it fits tightly and securely. If the shield
doesn’t fit, obtain a properly-sized shield from the chassis supplier.
OM11543

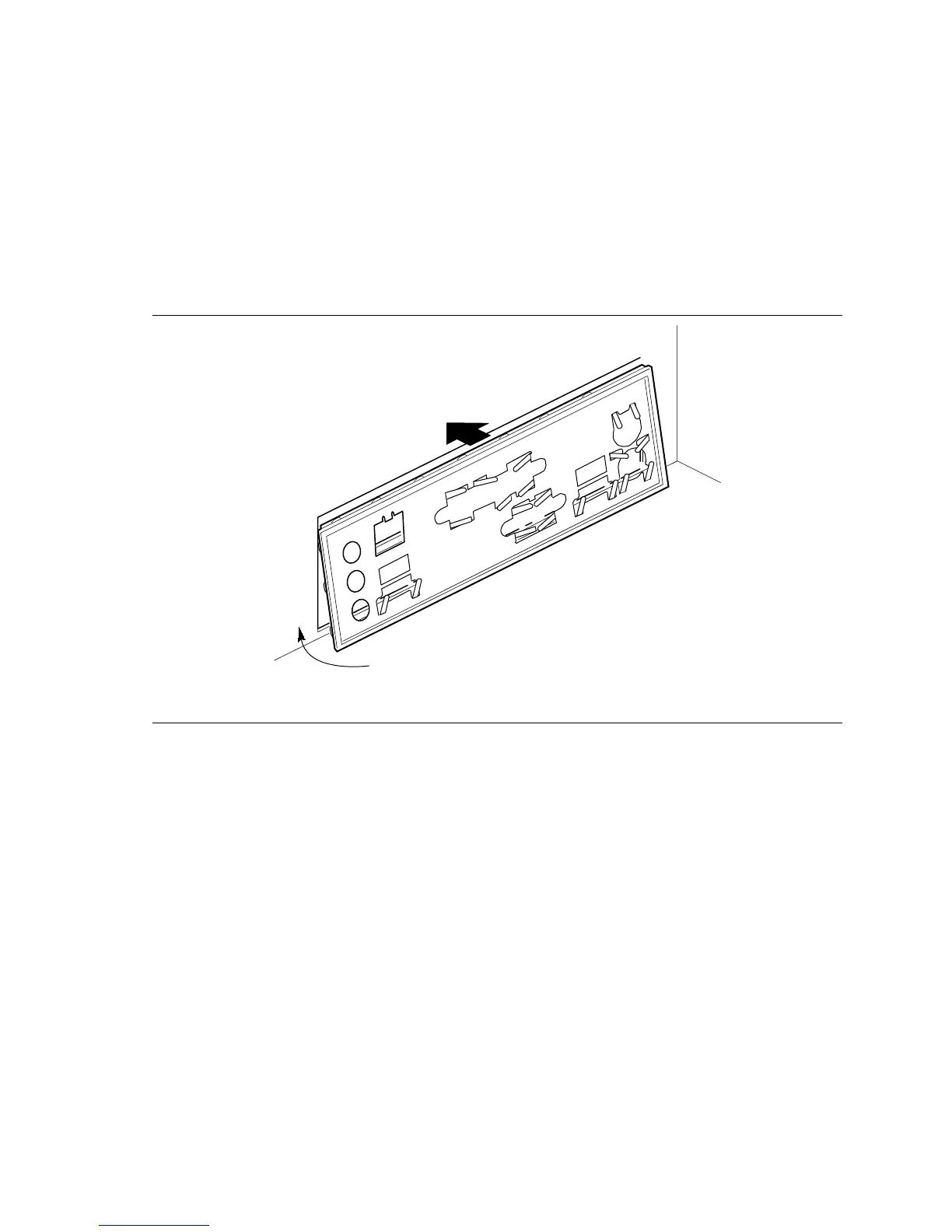

Figure 4. Installing the I/O Shield
