3. Align the four fasteners (B) of the processor fan heatsink RM base with the corresponding
holes in the desktop board (C). Gently press the base down until all four corners snap into
place. Verify that all four fasteners are fully engaged, then press down each of the four
locking pushpins (A) to fully secure the base to the desktop board (see Figure 8).
OM12096
A
C
B

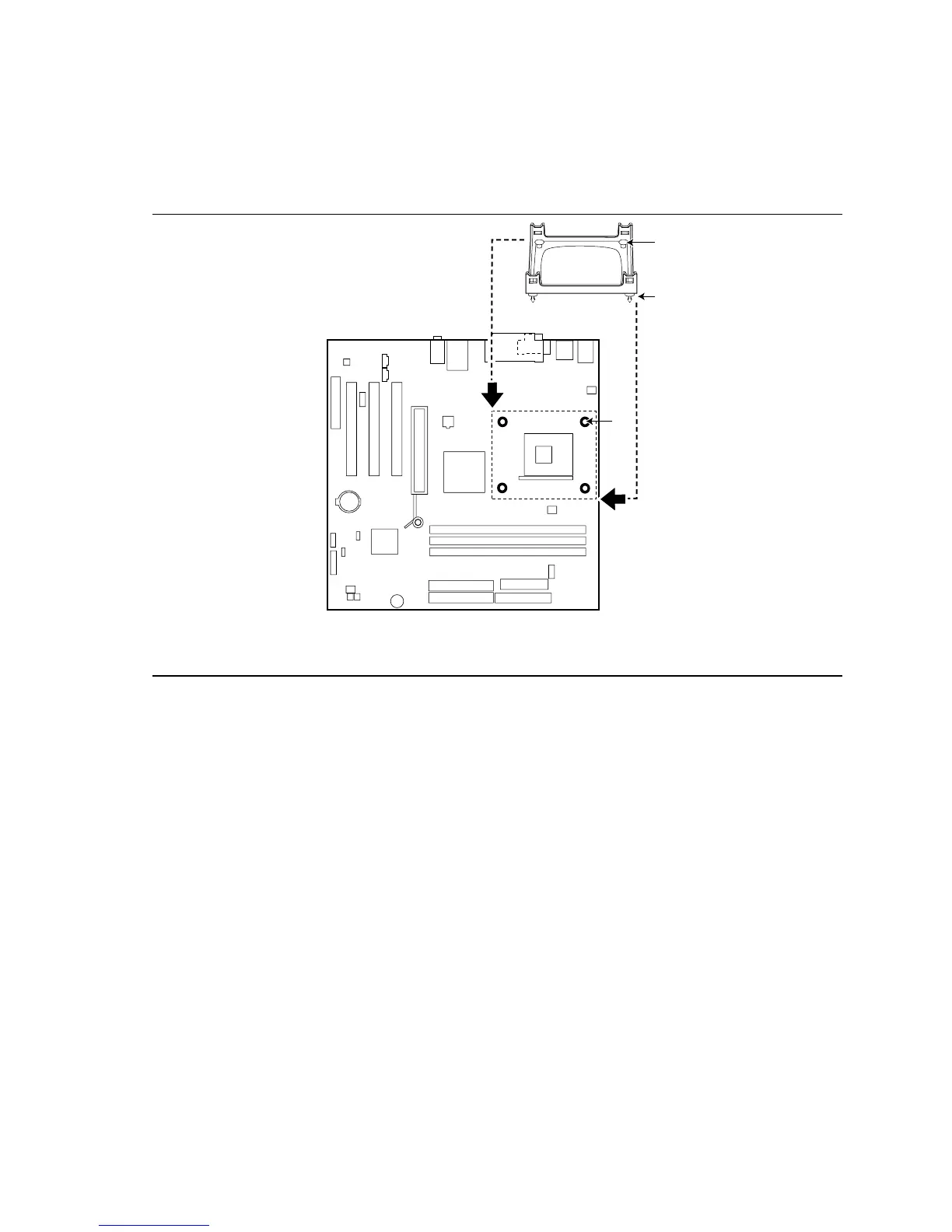

Figure 8. Installing the Processor Fan Heatsink RM Base to the Board
