The AGP card RM (see Figure 13) encloses the board’s AGP connector and stabilizes the AGP
card. Place the board (component side up) on a flat, supportive surface, preferably on the
anti-static bag in which the board was shipped. Follow the steps outlined below to attach the
RM (A) to the AGP connector (B):
1. Locate the AGP connector (J5E1) on the board as shown below. Note that the board’s
silkscreen (C) indicates the correct final position of the lever (D) on the RM.
OM11980
C
B
A
E
D

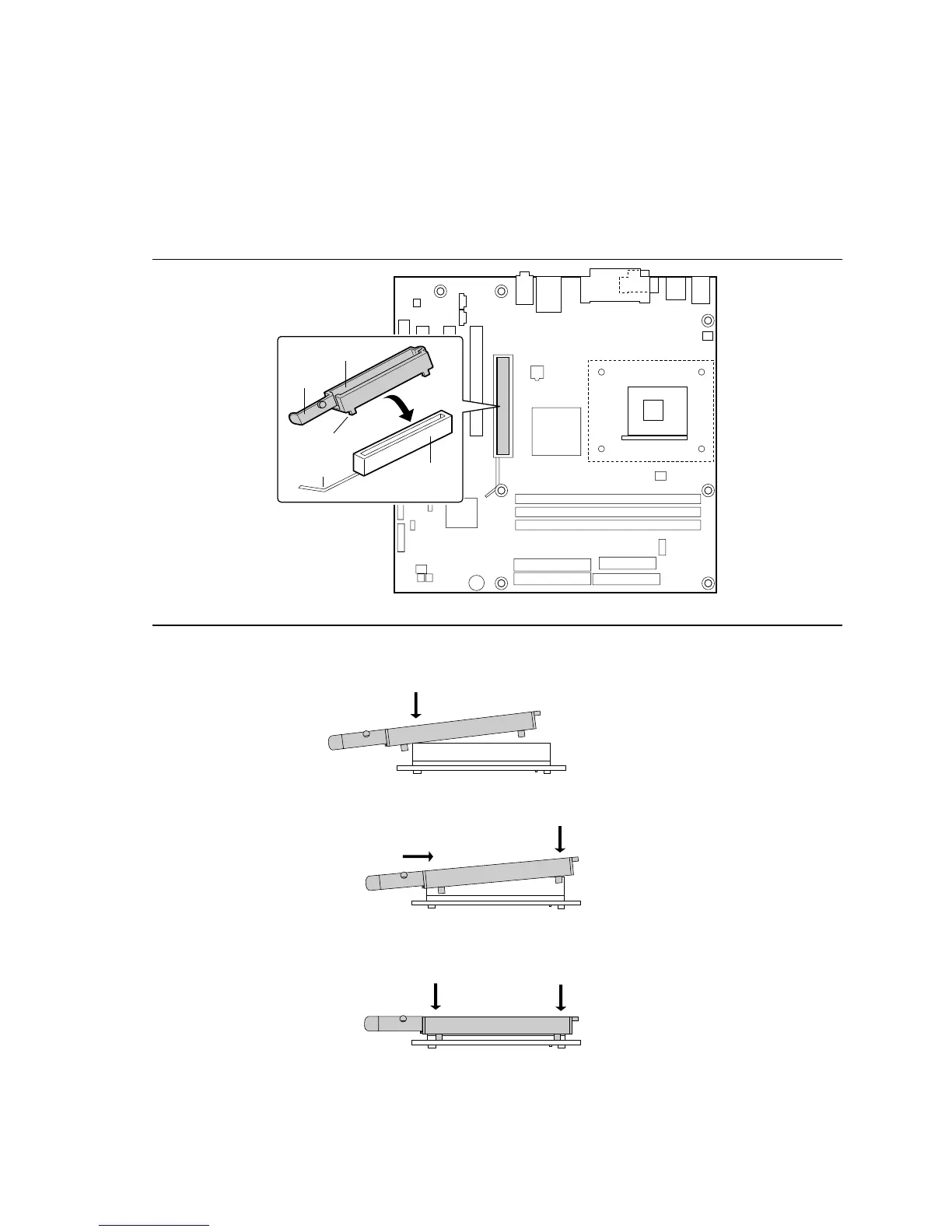

Figure 13. Installing the AGP Card Retention Mechanism
2. Position the RM over the AGP connector as shown below.
OM10111
3. Push the lever end of the RM in the direction of the arrow until the two rearmost tabs (E)
spread over the end of the AGP connector.
OM10180
4. Push the free end of the RM over the other end of the AGP connector and press down evenly
on both ends of the RM until all four tabs click underneath the AGP connector. Do not apply
unnecessary pressure to avoid damaging the board.
OM10181
