Technical Reference
71
Add-In Card and Peripheral Interface Connectors

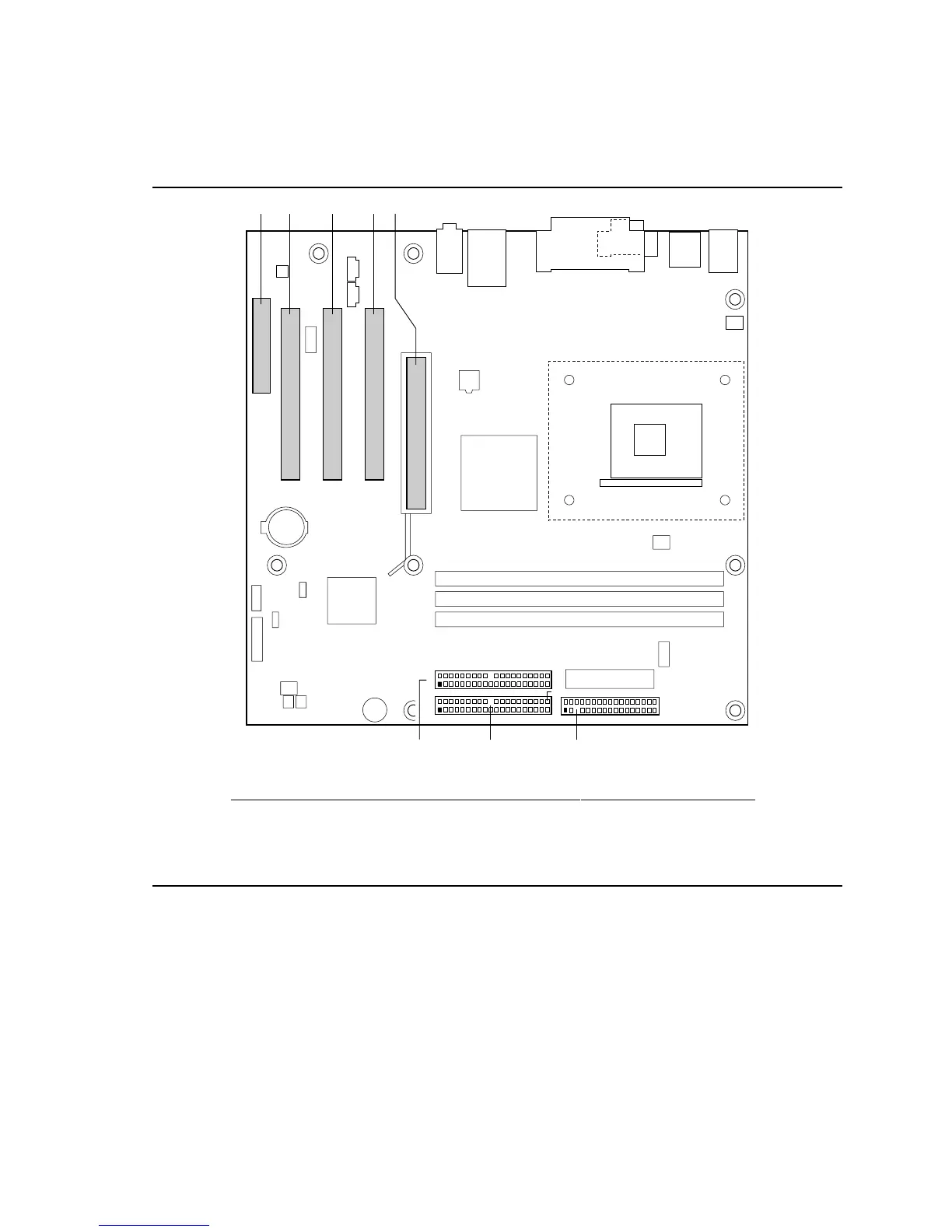

Figure 22 shows the add-in card and peripheral interface connectors for the D845HV board.
OM11993
E
A
D
C
B
G
1
2
33
34
1
2
40
39
1
2
40
39
F
H
Item
Description
Item
Description
A
CNR (optional)
E
AGP
B
PCI bus c
onnector 3
F
Diskette drive
C
PCI bus
connector 2
G
Primary IDE
D
PCI bus
connector 1
H
Secondary IDE
Figure 22. D845HV Board Add-in Card and Peripheral Interface Connectors
