Intel Desktop Boards D845HV and D845WN Product Guide
68
Back Panel Connectors

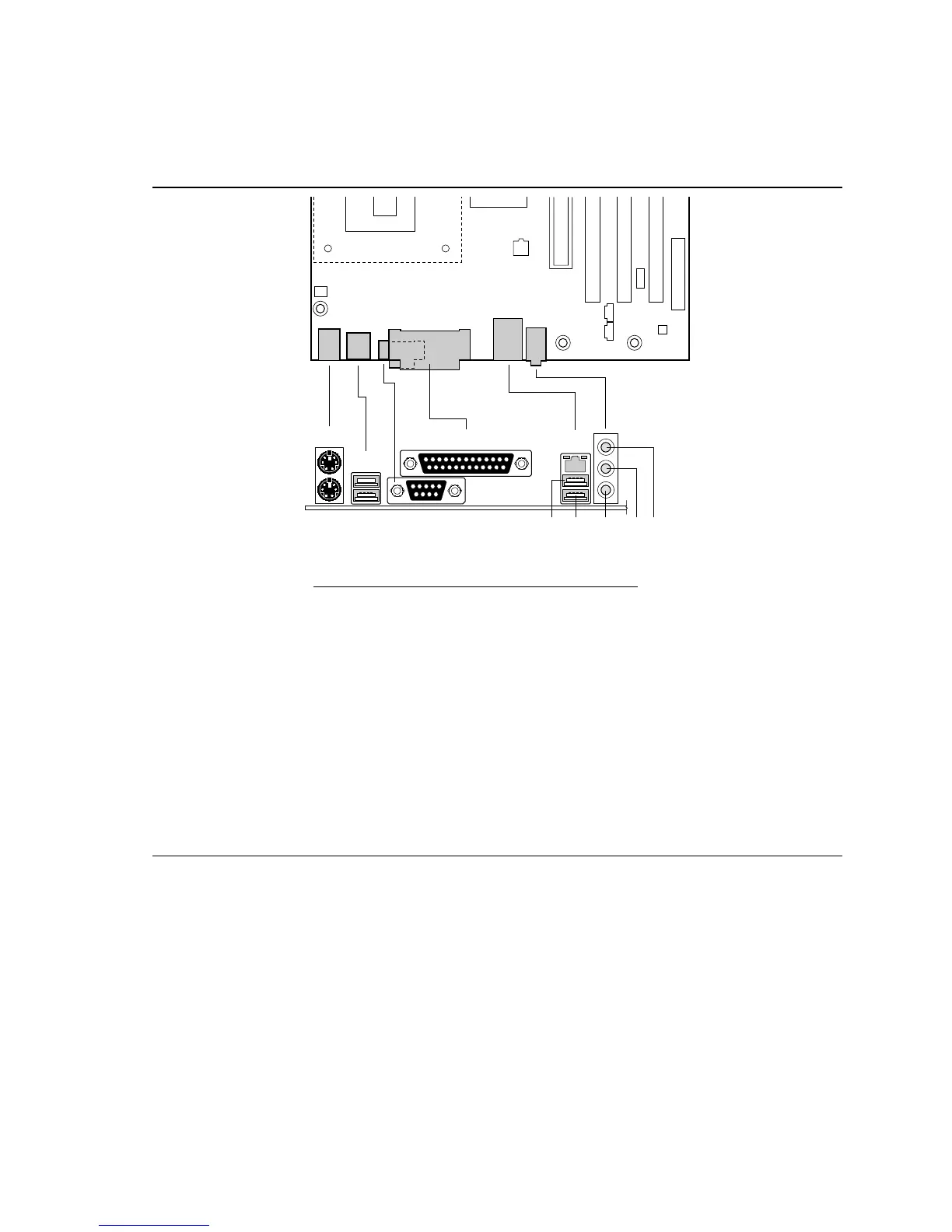

Figure 19 shows the back panel connectors on the board.
OM11990
A
E
C
G
BF JIDH
K L
Item Description Color
A PS/2 mouse port Green
B PS/2 keyboard port Purple
C USB port 0 Black
D USB port 1 Black
E Parallel port Burgundy
F Serial port A Teal
G RJ-45 (optional) Black
H USB port 2 Black
I USB port 3 Black
J Mic in Pink
K Audio line out Lime green
L Audio line in Light blue
Figure 19. Back Panel Connectors
✏
NOTE
The line out connector, located on the back panel, is designed to power either headphones or
amplified speakers only. Poor audio quality may occur if passive (non-amplified) speakers are
connected to this output.
