Intel Desktop Boards D845HV and D845WN Product Guide
34
Installing an AGP Card
Follow these instructions to install an AGP card:
1. Place the AGP card in the AGP connector.
2. Press down on the card until it is completely seated in the AGP connector and the card
retention notch snaps into place around the RM pin.
3. Secure the card’s metal bracket to the chassis back panel with a screw.
Removing the AGP Card from the Retention Mechanism
Follow these instructions to remove the AGP card from the RM:
1. Remove the screw (B) that secures the card’s metal bracket (A) to the chassis back panel.
2. Push back on the RM lever (D), as shown in Figure 14, until the retention pin (C) completely
clears the notch in the card.
3. Pull the card straight up (E).
OM10595
A
B
C
D
E

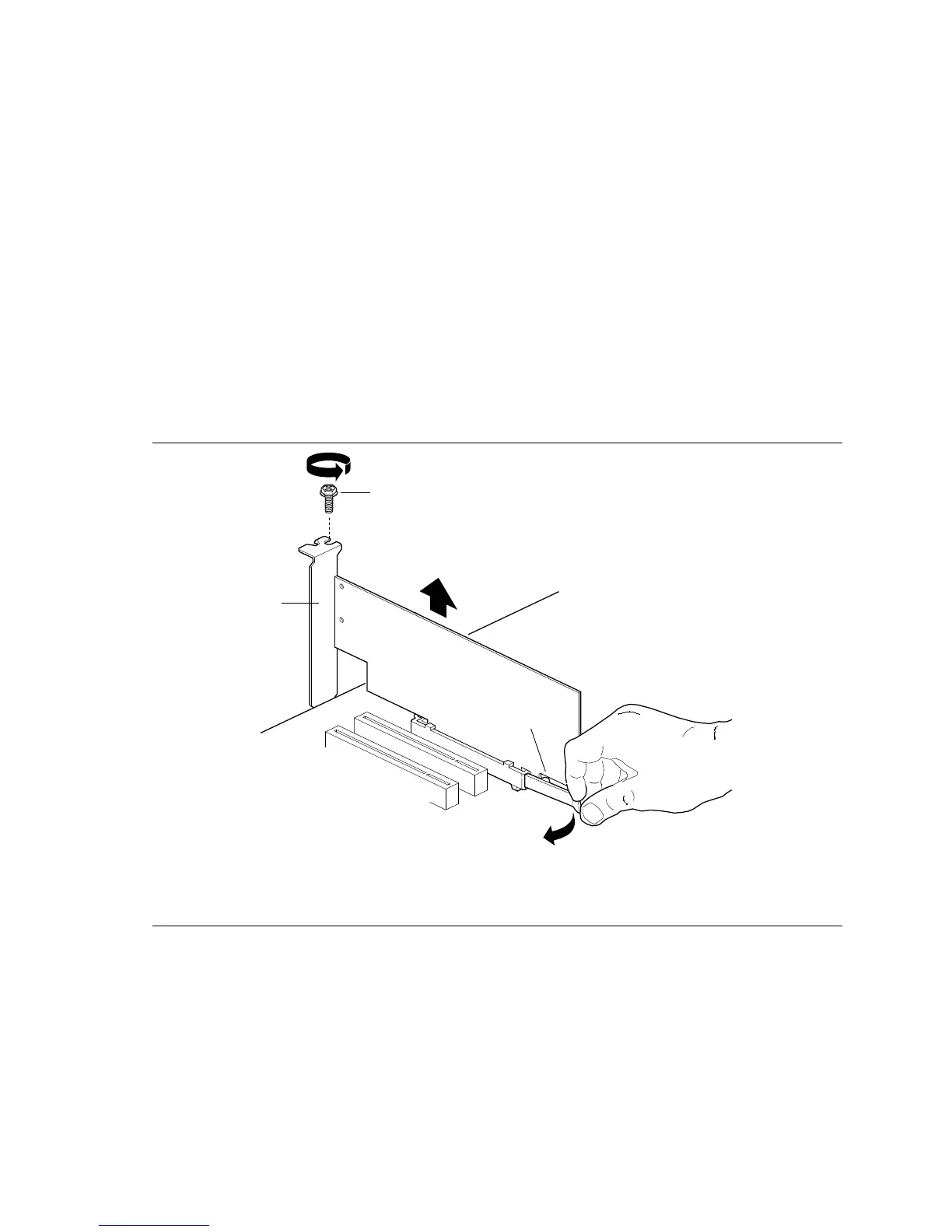

Figure 14. Removing the AGP Card
