Intel Desktop Boards D845HV and D845WN Product Guide
72

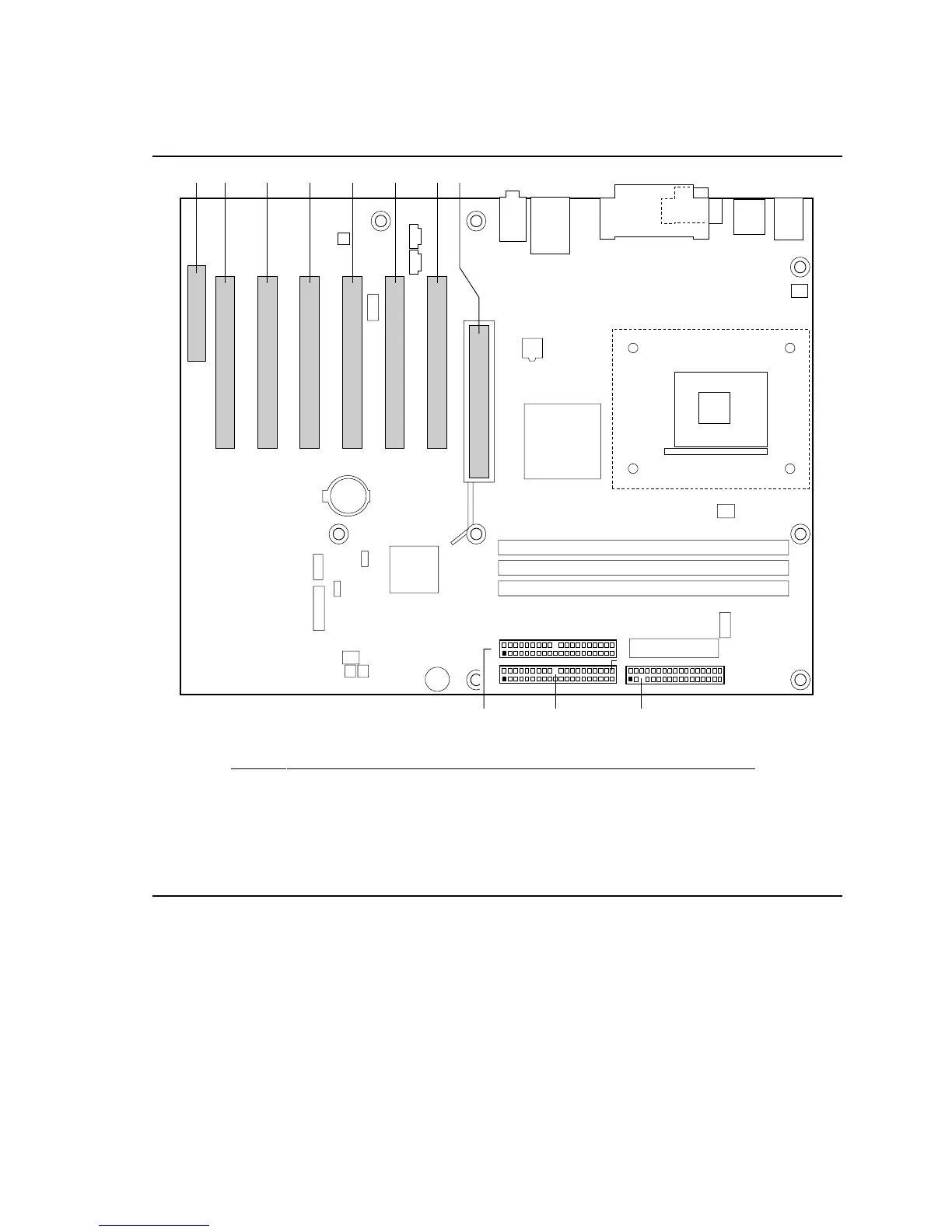

Figure 23 shows the add-in card and peripheral interface connectors for the D845WN board.
OM12041
J
1
2
33
34
1
2
40
39
1
2
40
39
IK
H
A
GFEB C D
Item Description Item Description
A CNR (optional) G PCI bus connector 1
B PCI bus connector 6 H AGP
C PCI bus connector 5 I Diskette drive
D PCI bus connector 4 J Primary IDE
E PCI bus connector 3 K Secondary IDE
F PCI bus connector 2
Figure 23. D845WN Board Add-in Card and Peripheral Interface Connectors
