Intel 桌面主板 D915GEV/D915GUX/D915GAV/D915GAG 产品指南
50
连接风扇和电源电缆
连接风扇电缆
图 23 显示了风扇接头连接器的位置。将处理器风扇散热器电缆连接到桌面主板上的 4 针
处理器风扇接头连接器上。 将机箱风扇电缆连接到 3 针风扇接头连接器上。
OM16857
3
1
2
4
3
1
2
4
AB
3
1
2
3
1
2
BA

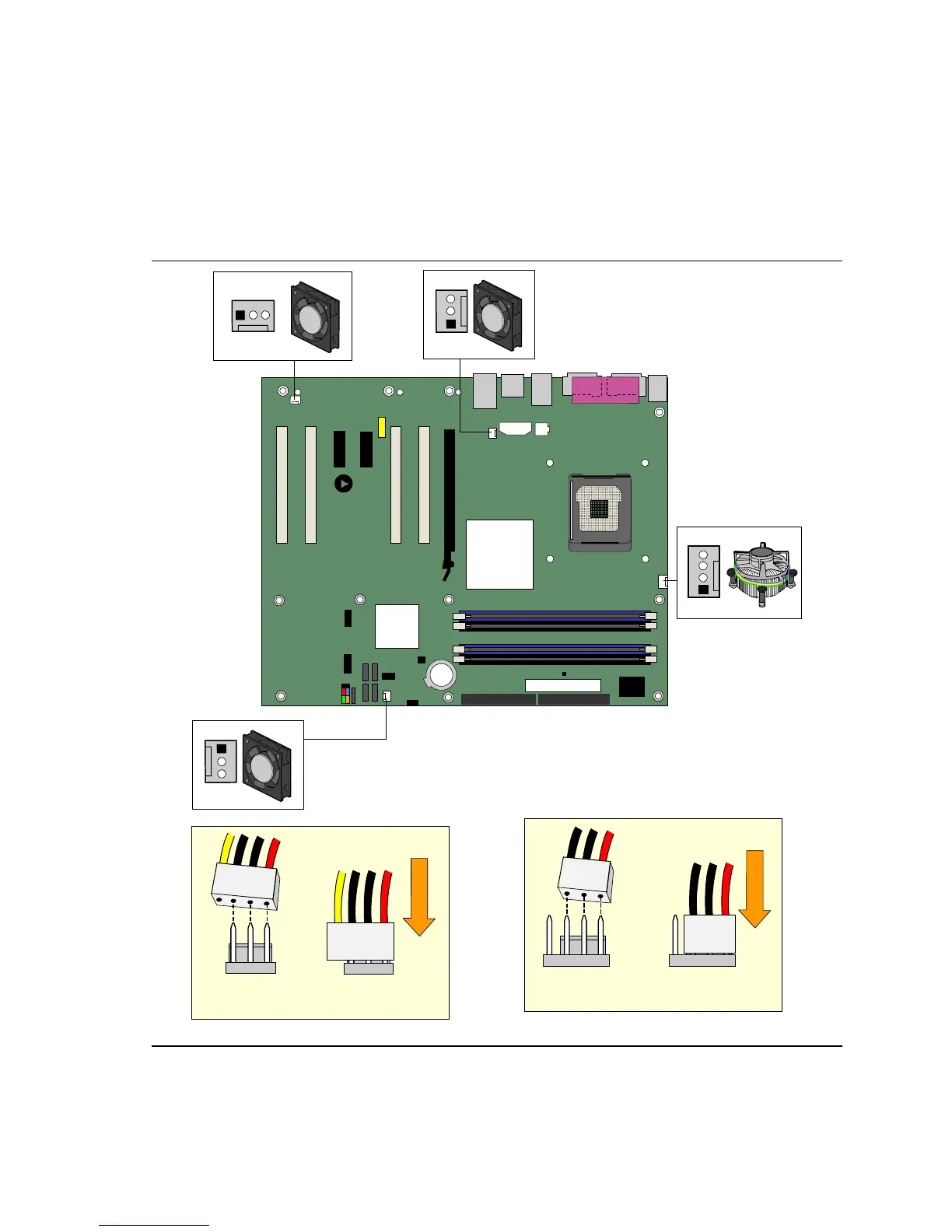

图 23. 风扇接头连接器位置
