Intel D945PLRN User Manual

Product Description
19
1.4.1.2 Single Channel (Asymmetric) Mode Configurations

NOTE
Dual channel (Interleaved) mode configurations provide the highest memory throughput.

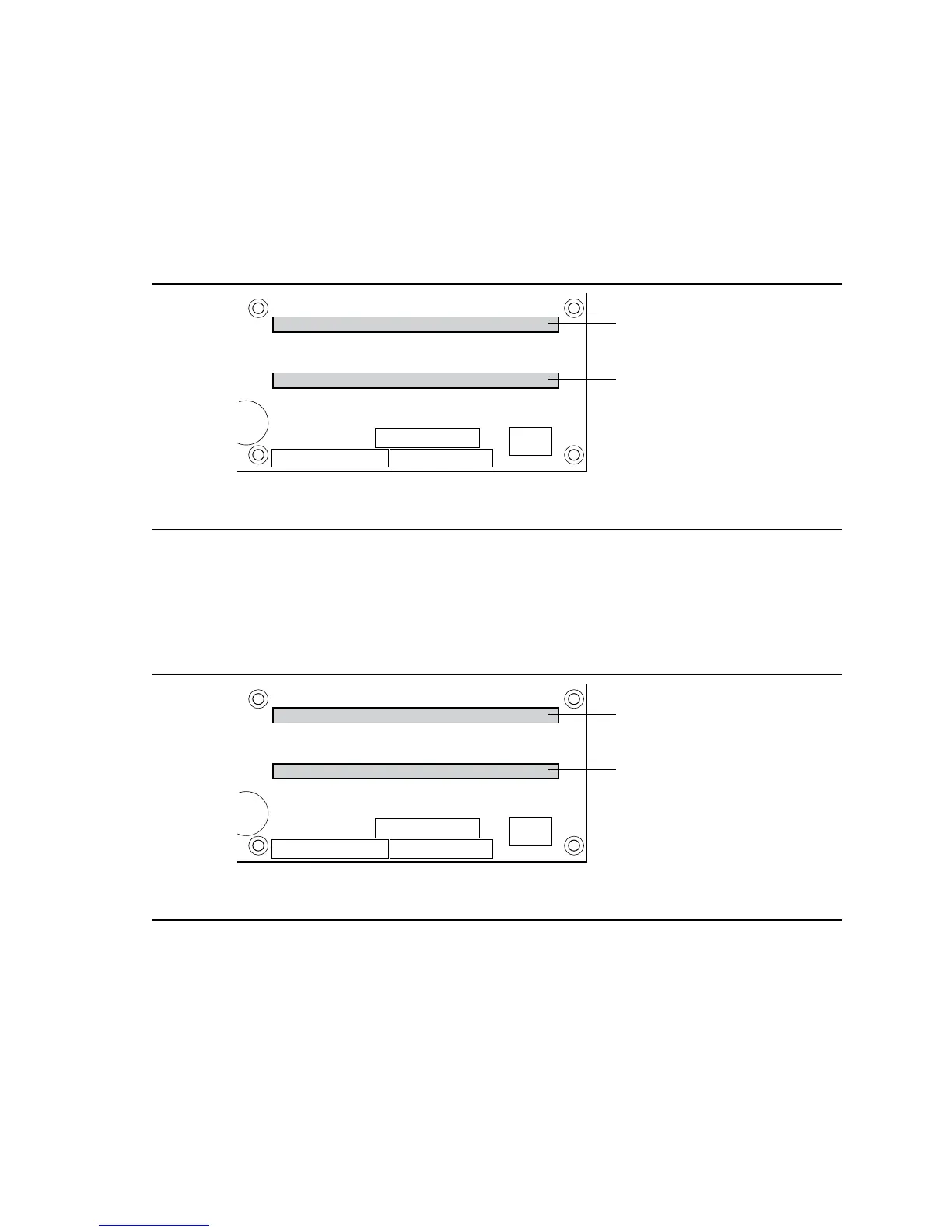

Figure 5 shows a single channel configuration using one DIMM. In this example, only Channel A
is populated. Channel B is not populated.
OM17975
Channel A, DIMM 0
Channel B, DIMM 0
256 MB
Figure 5. Single Channel (Asymmetric) Mode Configuration with One DIMM
Figure 6 shows a single channel configuration using two DIMMs. In this example, the capacity of
the DIMM in Channel A does not equal the capacity of the DIMM in Channel B.
OM17976
Channel A, DIMM 0
Channel B, DIMM 0
256 MB
512 MB
Figure 6. Single Channel (Asymmetric) Mode Configuration with Two DIMMs

Intel D945PLRN Specifications

General

Form Factor	ATX
Socket Type	LGA 775
Memory Type	DDR2
Memory Slots	2
Maximum Memory	4 GB
SATA	4 x SATA 3Gb/s
Chipset	Intel 945PL
Supported CPU	Intel Pentium 4, Pentium D, Celeron D
Expansion Slots	1 x PCI Express x16, 3 x PCI
IDE	1 x IDE connector
LAN	10/100 Mbps Ethernet
USB Ports	8 x USB 2.0
