Intel D945PLRN User Manual

Technical Reference
63
CAUTION
Ensure that proper airflow is maintained in the processor voltage regulator circuit. Failure to do
so may result in damage to the voltage regulator circuit. The processor voltage regulator area
(item A in Figure 20) can reach a temperature of up to 85
o
C in an open chassis.

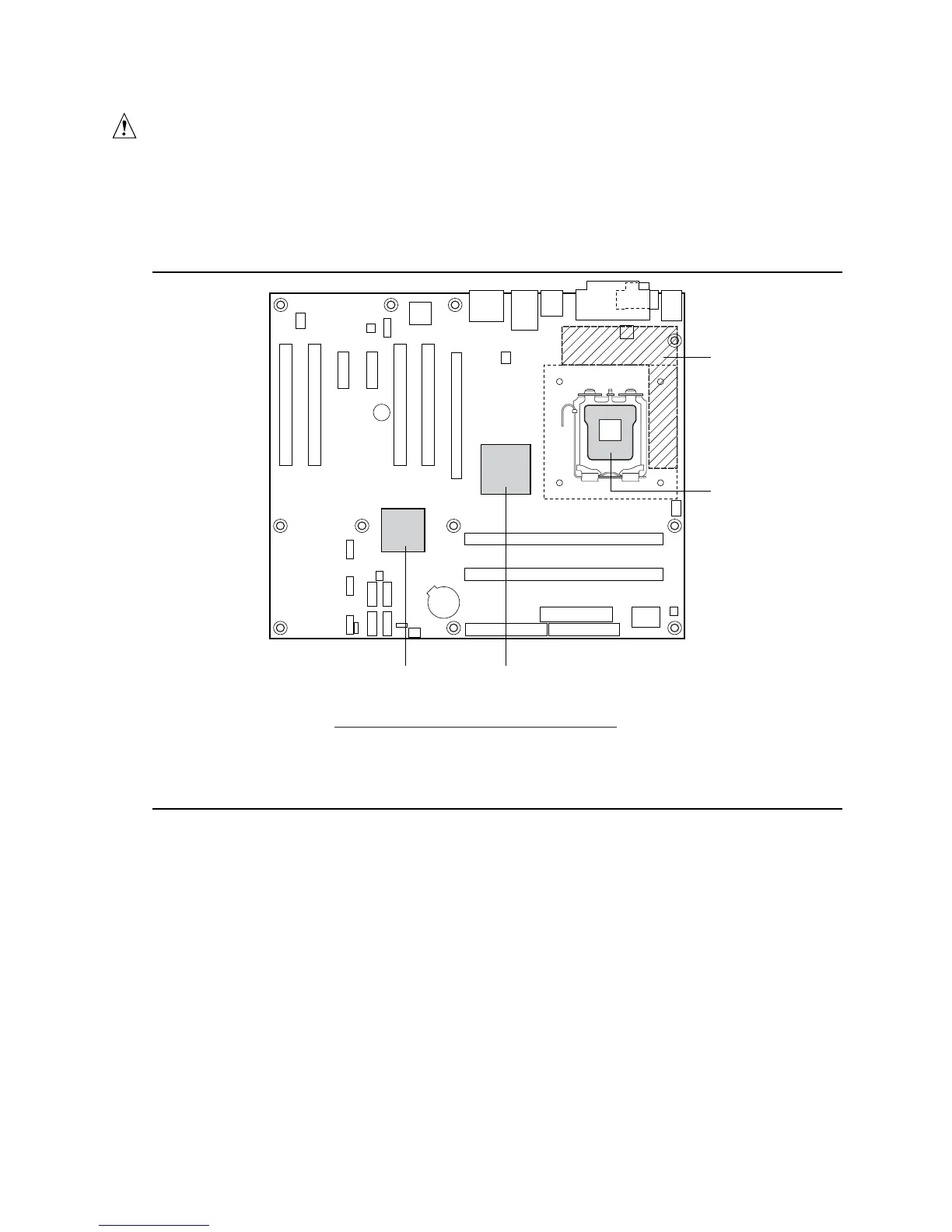

Figure 20 shows the locations of the localized high temperature zones.
OM18233
B
A
CD
Item Description
A Processor voltage regulator area
B Processor
C Intel 82945PL MCH
D Intel 82801G ICH7
Figure 20. Localized High Temperature Zones
