Intel Desktop Board D945PLRN Technical Product Specification
34
1.10.4 Thermal Monitoring

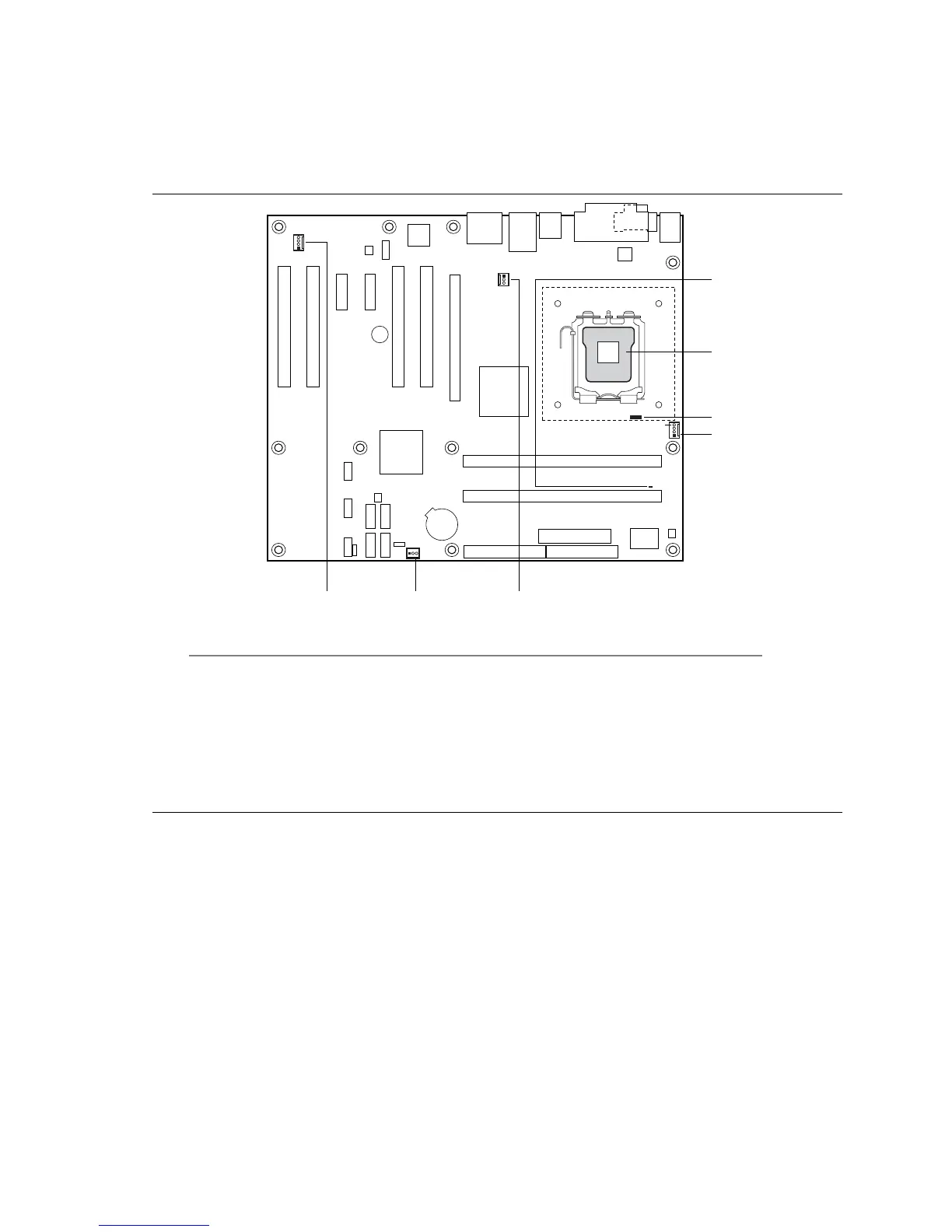

Figure 10 shows the location of the sensors and fan connectors.
OM18228
1
4
3
1
1
4
D
A
C
EFG
B
1
3
Item Description
A
Remote ambient temperature sensor
B
Thermal diode, located on processor die
C
Ambient temperature sensor, internal to hardware monitoring and fan control ASIC
D
Processor fan
E
Rear chassis fan
F
Front chassis fan
G
Auxiliary fan (optional)
Figure 10. Thermal Sensors and Fan Connectors
