Installing and Replacing Desktop Board Components
29
Figure 5 shows the location of the mounting screw holes for Desktop Board
D946GZAB.

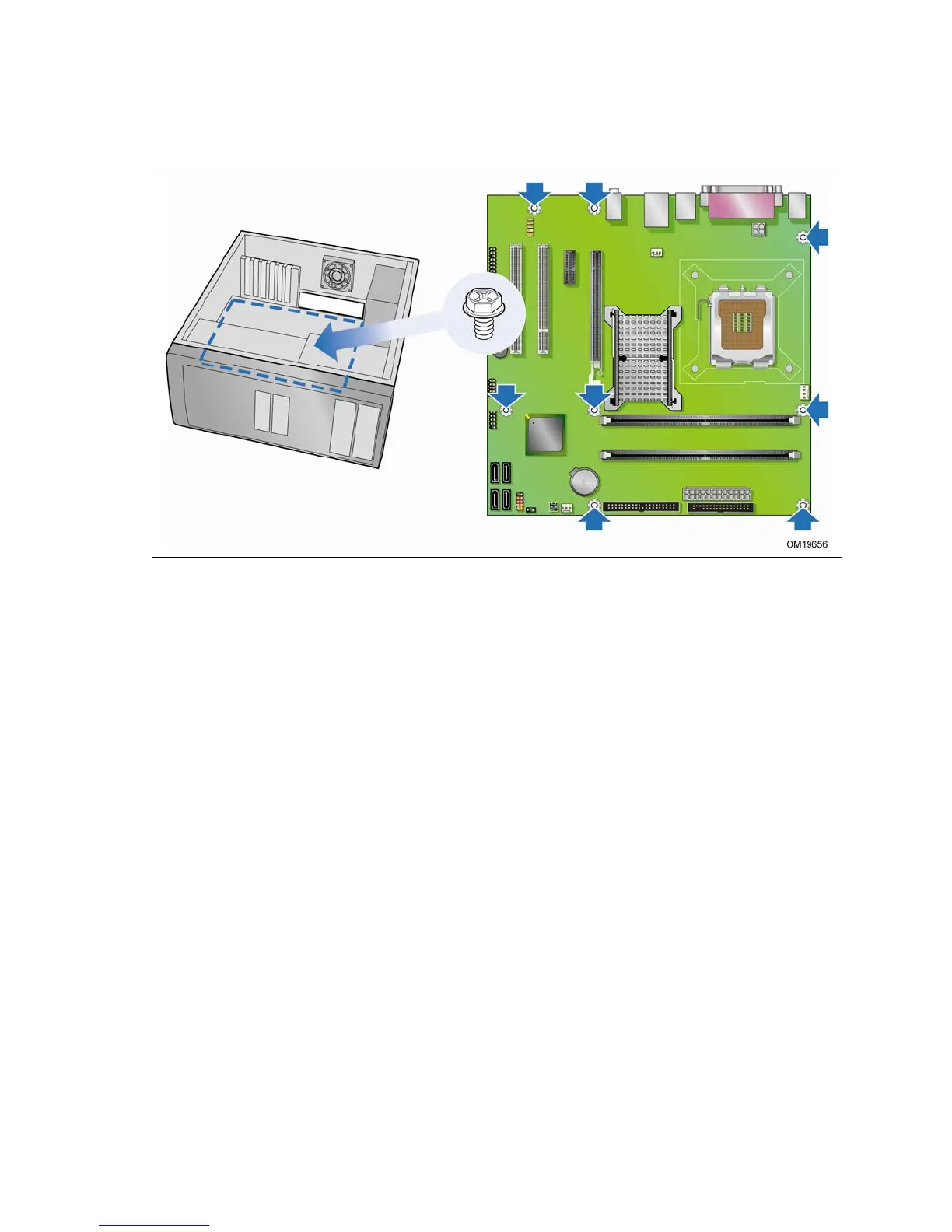

Figure 5. Desktop Board D946GZAB Mounting Screw Hole Locations
