Connecting to Internal Headers
Before connecting cables to the internal headers, observe the precautions in "Before
You Begin" on page
25. Figure 20 shows the location of the internal headers.
Item Description
A HD Audio Link
B Front panel audio
C Alternate front panel power LED
D Front panel
E USB 2.0

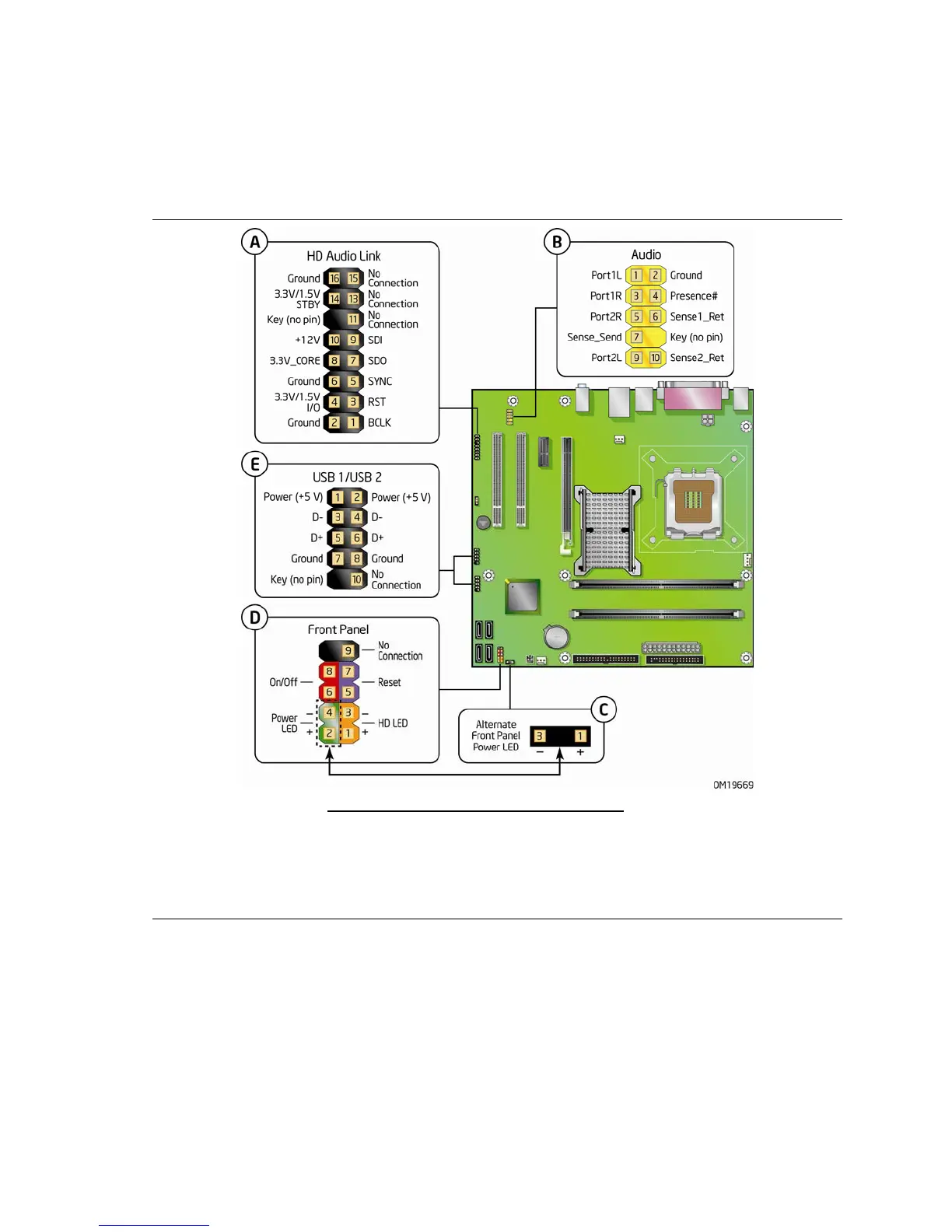

Figure 20. Internal Headers
