Intel Desktop Board D946GZAB Product Guide
34
Removing the Processor
For instructions on how to remove the processor fan heat sink and processor, refer to
the processor installation manual or the Intel World Wide Web site at:
1Integration of the Boxed Intel
®
Pentium
®
4 Processor in the 775-Land Package
Installing and Removing Memory
NOTE
To be fully compliant with all applicable Intel SDRAM memory specifications, the board
requires DIMMs that support the Serial Presence Detect (SPD) data structure. You can
access the PC Serial Presence Detect Specification at:
http://www.intel.com/technology/memory/ddr/specs/dda18c32_64_128x72ag_a.pdf
The desktop board has two 240-pin DDR2 DIMM sockets providing Channel A and
Channel B. For dual-channel performance, install a matched pair of DIMMs equal in
speed and size (see
Figure 13).

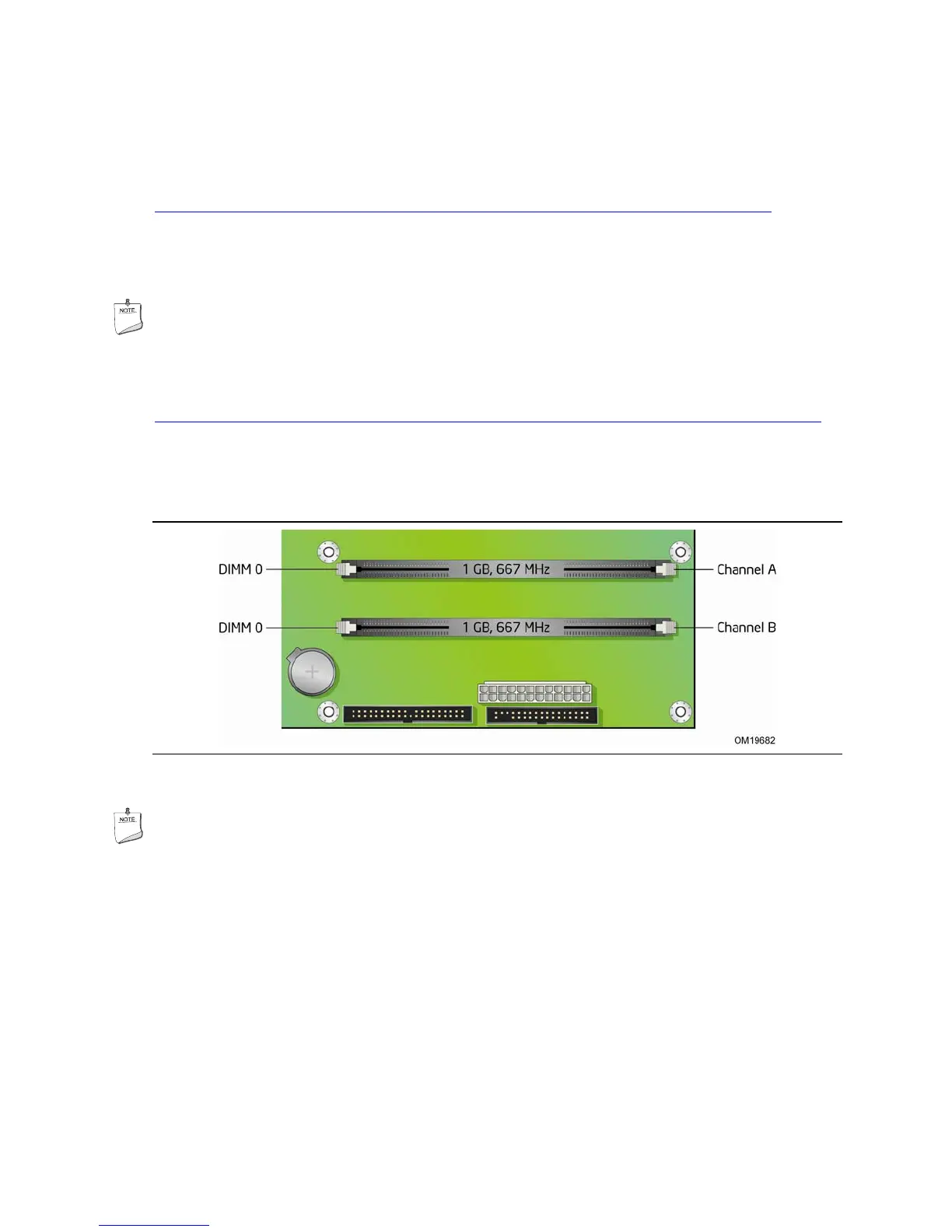

Figure 13. Dual Channel Memory Configuration Example
NOTE
All other memory configurations will result in single channel memory operation.
