Connecting to the Flexible Audio System
After installing the audio driver, the multi-channel audio feature can be enabled.
Figure 21 shows the back panel audio connectors. The default connector assignments
are shown in the table. The connectors are retaskable using the audio driver interface.
Item Description
A Line in/retasking jack
B Line out/retasking jack
C Mic in/retasking jack

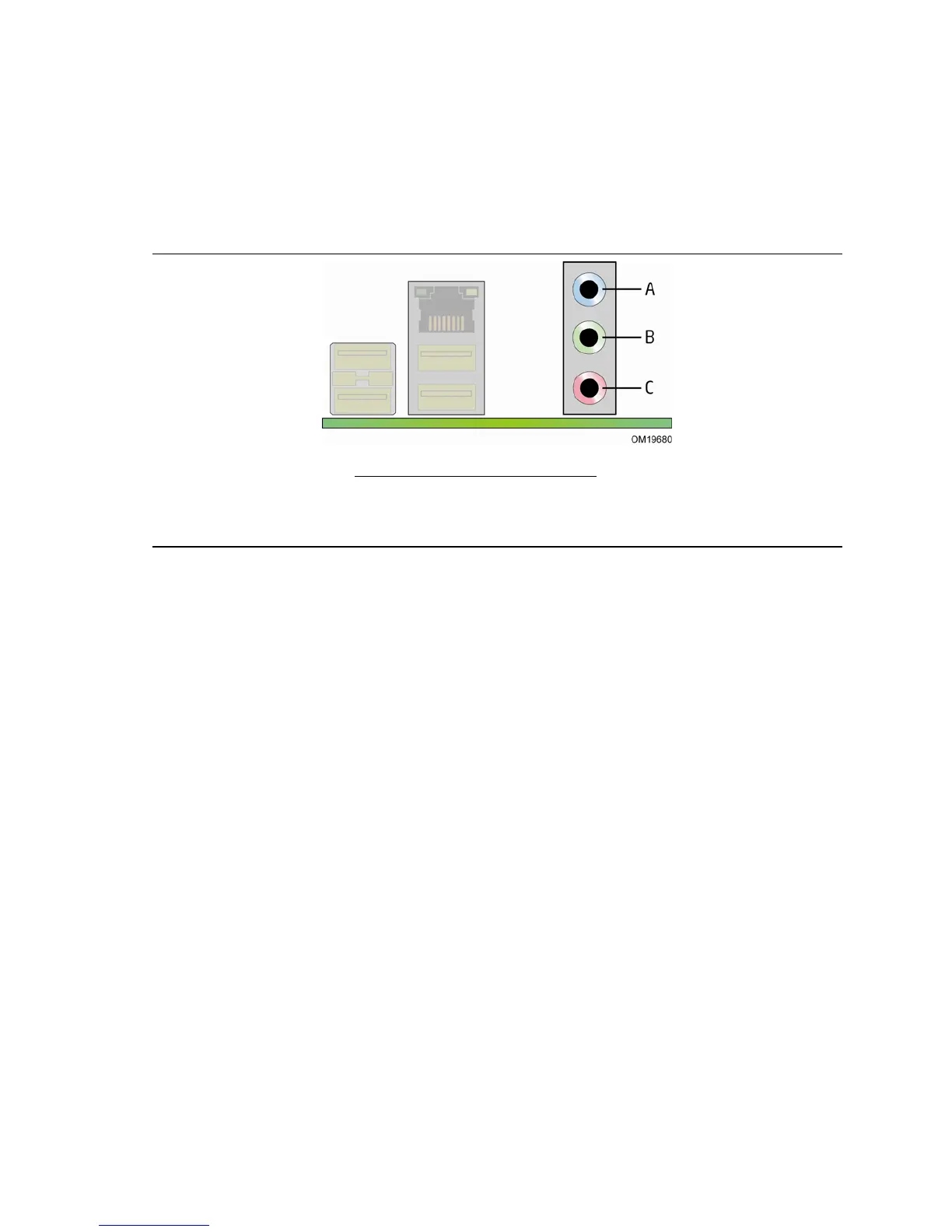

Figure 21. Back Panel Audio Connectors
