Intel Desktop Board DG41AN Product Guide
32
Installing the Processor Fan Heat Sink
Intel Desktop Board DG41AN has mounting holes for a processor fan heat sink. For
instructions on how to attach the processor fan heat sink to the Desktop Board, refer
to the boxed processor manual.
Connecting the Processor Fan Heat Sink Cable
Connect the processor fan heat sink cable to the 4-pin processor fan header (see
Figure 12). A fan with a 4-pi
n connector as shown in Figure 12, A is recommended;
however, a fan with a 3-pin connector (Figure 12, B) can be used. However, since the
fan
with a 3-pin connector cannot use the onboard fan control, the fan will always
operate at full speed.

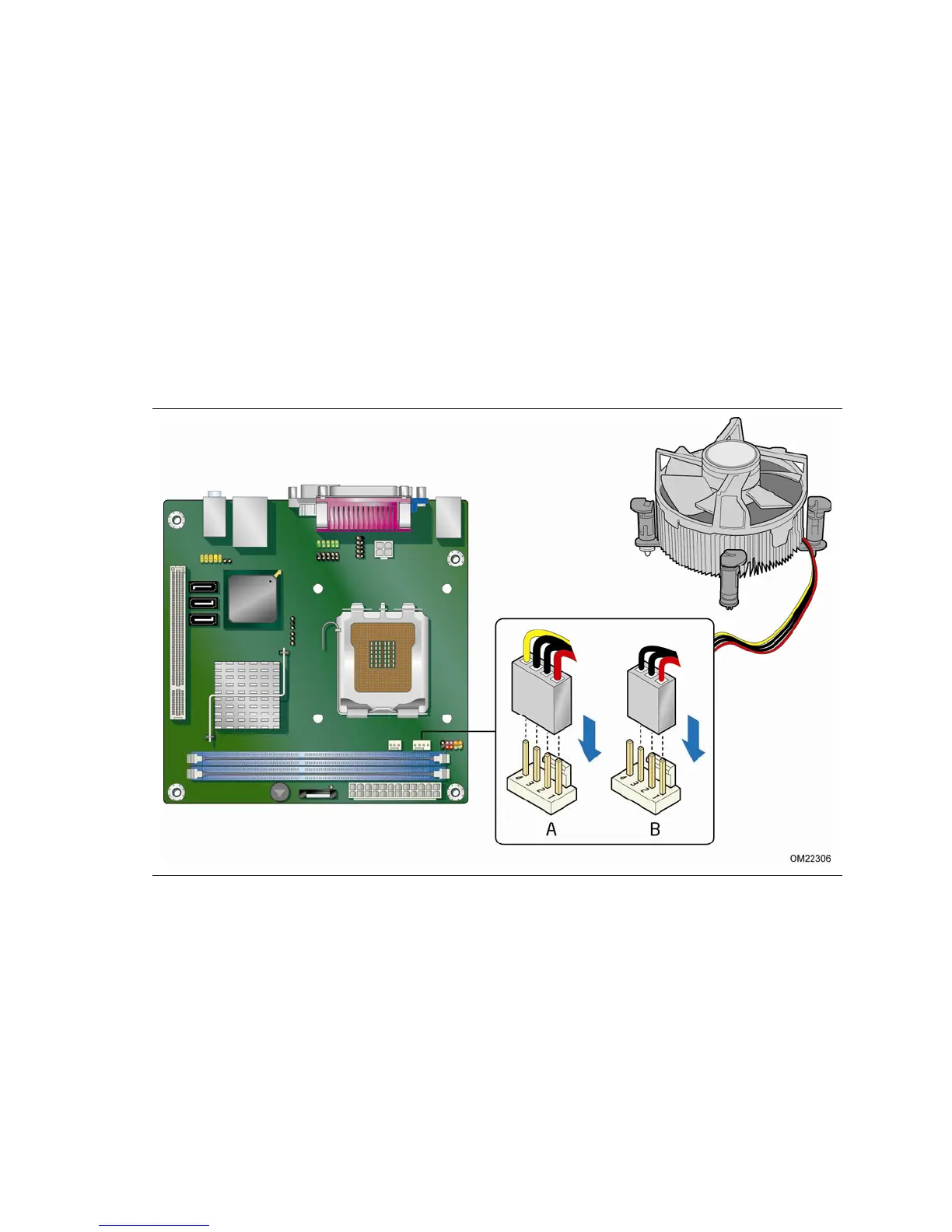

Figure 12. Connecting the Processor Fan Heat Sink Cable to the
Processor Fan Header
Removing the Processor
For instructions on how to remove the processor fan heat sink and processor, refer to
the processor installation manual.
