Installing a Processor Fan Heat Sink
Intel Desktop Board DH61AG has mounting holes for a processor fan heat sink. For
instructions on how to attach the processor fan heat sink to the Desktop Board, refer
to the boxed processor manual or thermal solution manual.
Connecting the Processor Fan Heat Sink Cable
Connect the processor fan heat sink power cable to the 4-pin processor fan header
(see Figure 10). A fan with a 4-pin connector as shown in Figure 10 is recommended.

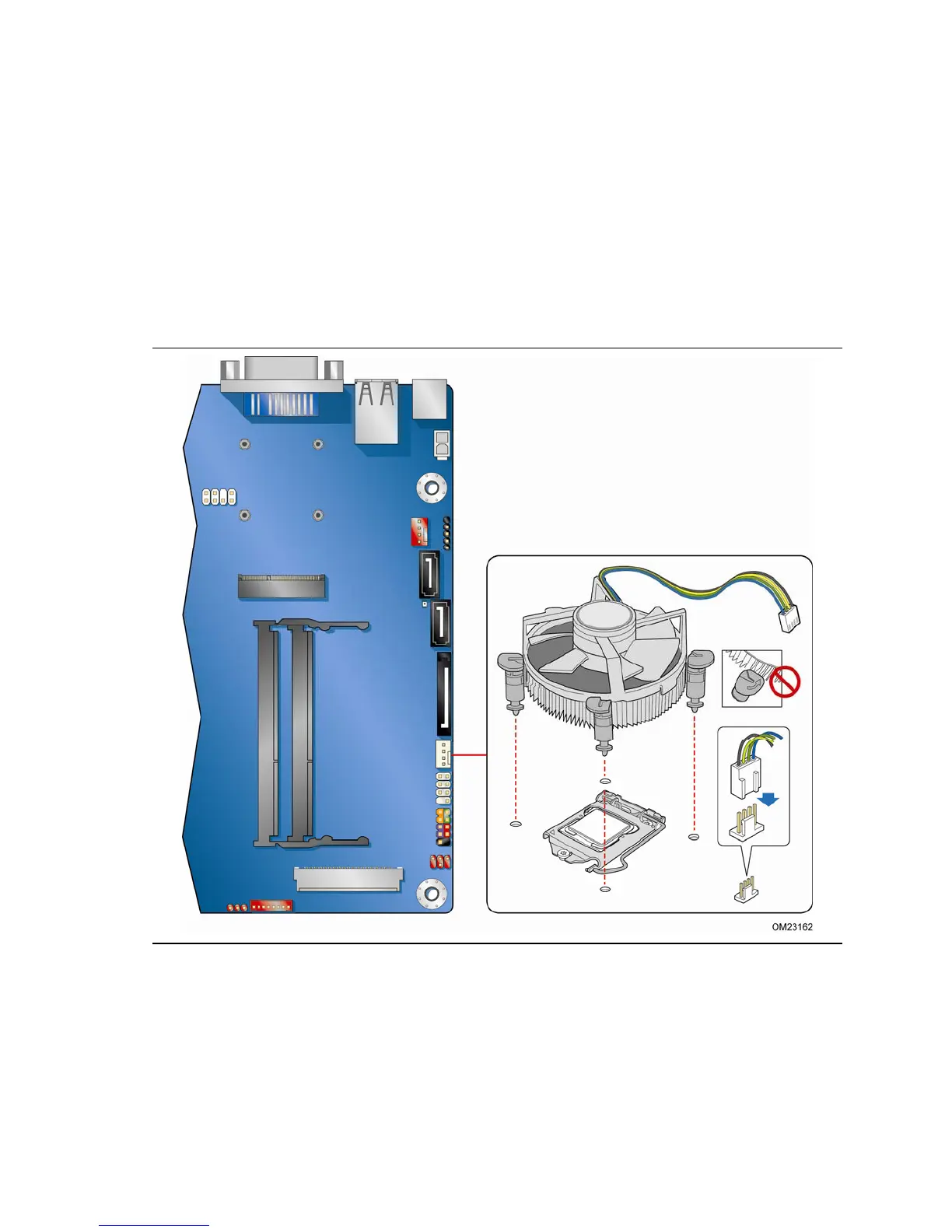

Figure 10. Connecting the Processor Fan Heat Sink Power Cable to the
Processor Fan Header
