Intel Desktop Board DH61AG Product Guide
38
Connecting a System Fan
You can connect a 4-pin or 3-pin system fan cable to the system fan header on the
Desktop Board as shown in Figure 17.

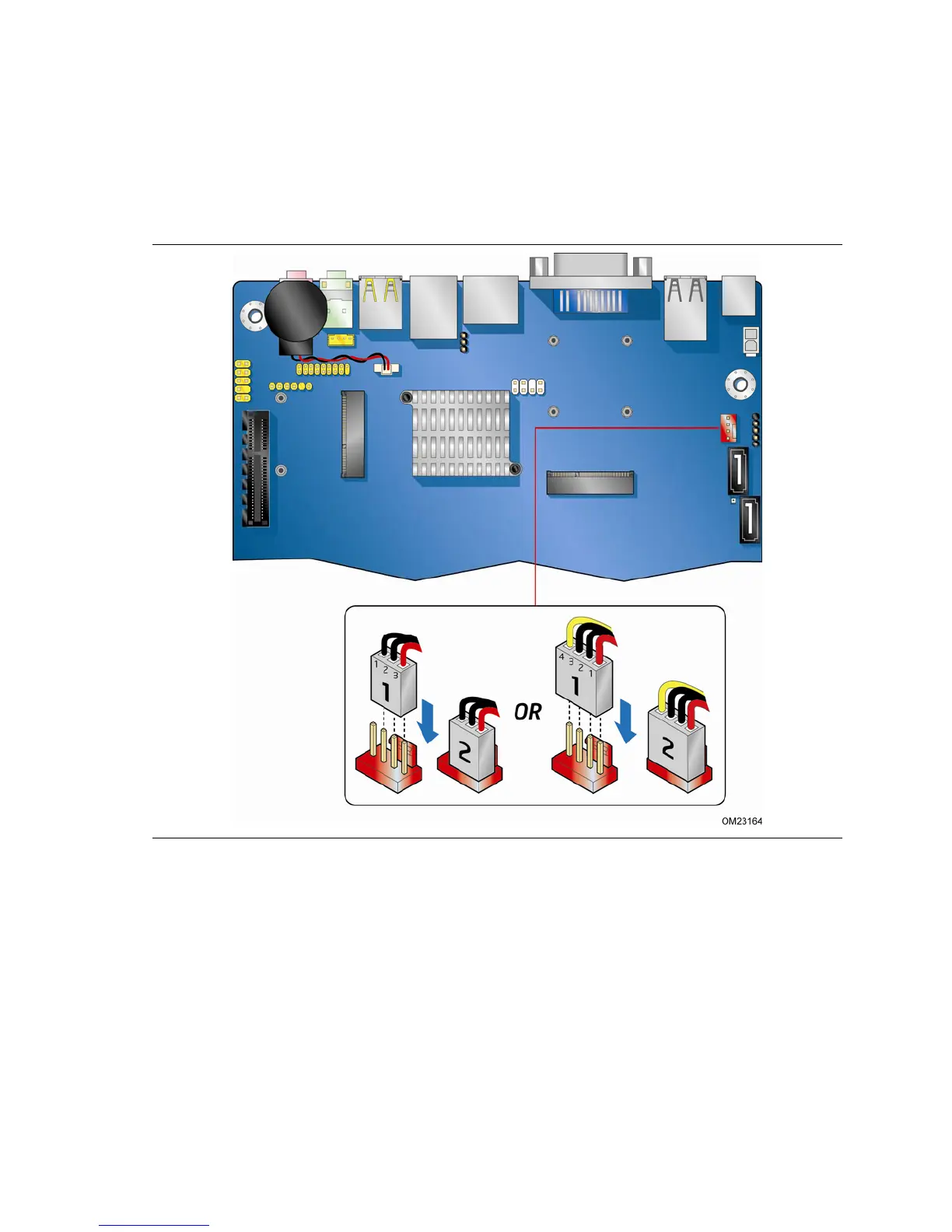

Figure 17. Location of the Chassis Fan Header
