Installing and Replacing Desktop Board Components
31
Installing a PCI Express Mini Card in the PCI
Express Half-Mini Card Slot
A PCI Express Half-Mini Card can be installed in the Desktop Board’s PCI Express
Half-Mini Card slot.
To install a PCI Express card in this slot, see Figure 15 and follow these steps:
1. Observe the
precautions in "Before You Begin" on page 15.
2. Locate the
PCI Express Half-Mini Card slot (Figure 1, Y).
3. Insert the card into the PCI Expres
s Mini Card connector (Figure 15, A) at a slightly
upward
angle.
4. Align the mounting holes and secure the card in place (Figure 15, B).

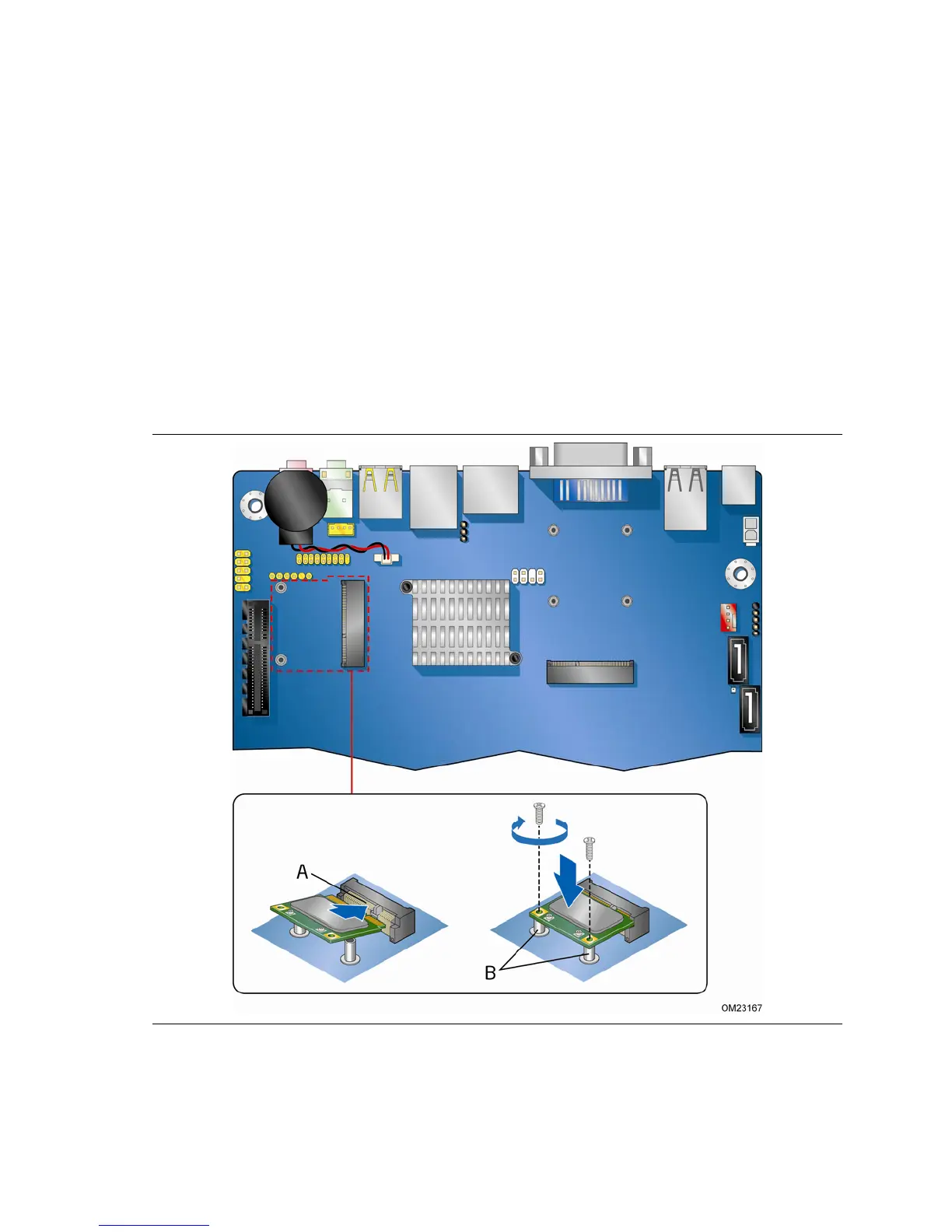

Figure 15. Installing a PCI Express Mini Card in the Half-Mini Card Slot
