Intel Desktop Board DH61AG Product Guide
32
NOTE
If you install a wireless card in the PCI Express Half-Mini Card slot, the external
antenna(s) can be connected through the standard-size I/O shield by removing the
cut-outs above the shield’s back panel I/O section.
Connecting to the Internal Headers and
Connectors
Before connecting cables to any of the internal headers and connectors, observe the
precautions in “Before You Begin” on page 15. Figure 16 shows the location of the
internal headers and
connectors on Intel Desktop Board DH61AG.

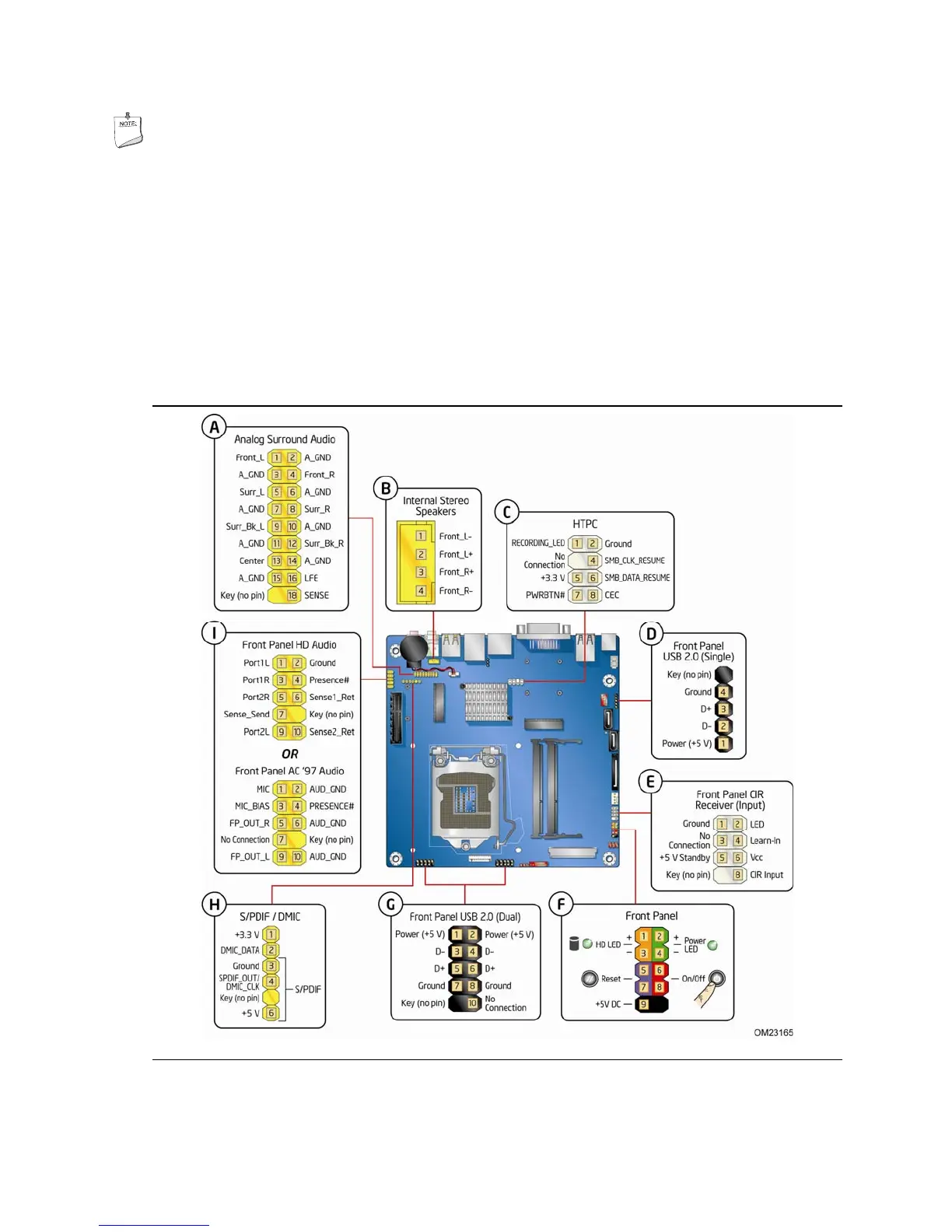

Figure 16. Internal Headers and Connectors
