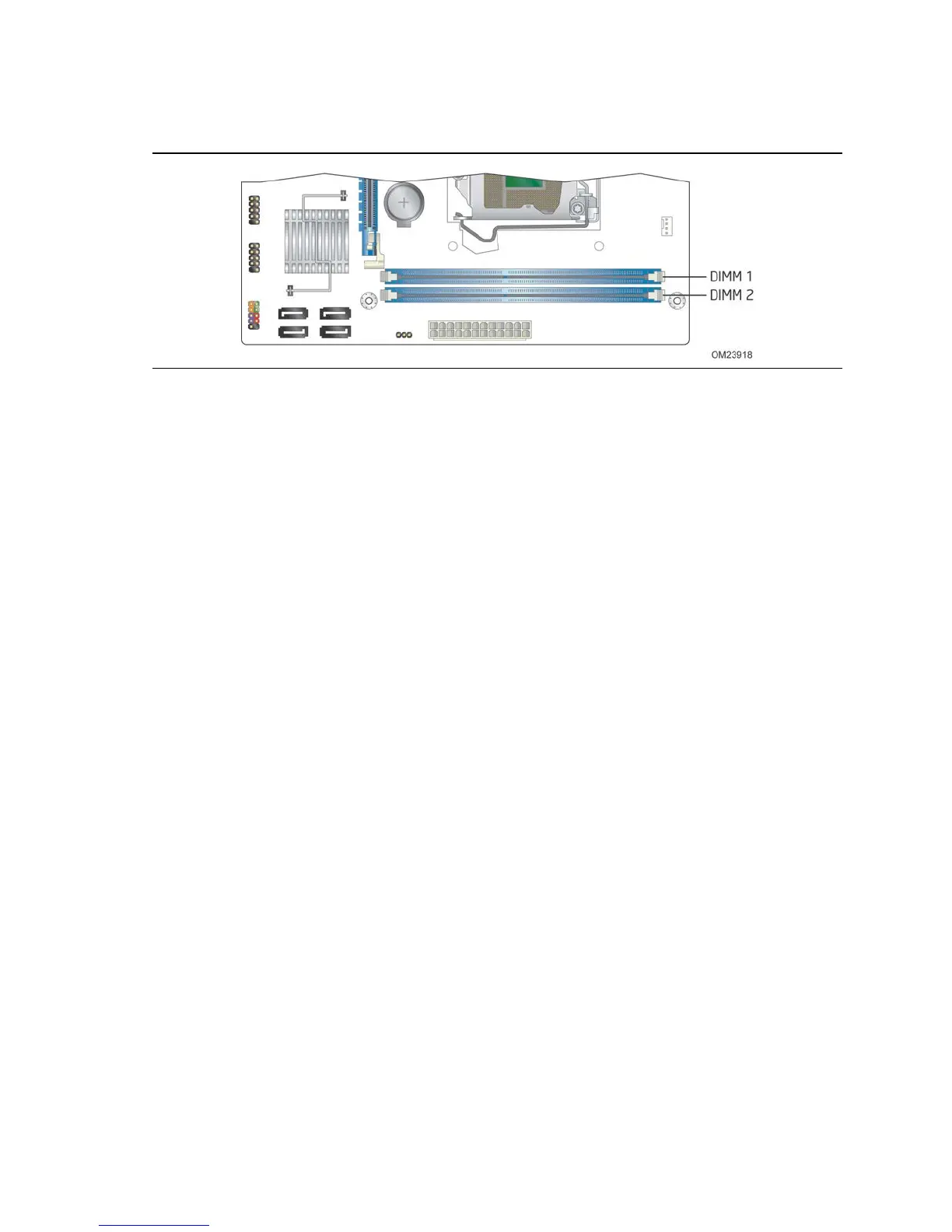

Figure 3 illustrates the memory channel and DIMM configuration.
Figure 3. Memory Channel and DIMM Configuration
1.6 Graphics Subsystem
The board supports system graphics through either Intel Graphics Technology or a
PCI Express 3.0 x16 add-in graphics card.
1.6.1 Integrated Graphics
The board supports integrated graphics through the Intel
®
Flexible Display Interface
(Intel
®
FDI) for processors with Intel Graphics Technology.
1.6.1.1 Analog Display (VGA)
The VGA port supports analog displays. The maximum supported resolution is 2048 x
1536 (QXGA) at a 75 Hz refresh rate. The VGA port is enabled for POST whenever a
monitor is attached, regardless of the DVI-D connector status.
1.6.1.2 Digital Visual Interface (DVI-D)
The DVI-D port supports only digital DVI displays. The maximum supported resolution
is 1920 x 1200 at 60 Hz refresh. The DVI-D port is compliant with the DVI 1.0
specification.
