Intel Desktop Board DH61BF Technical Product Specification
48
2.4 Mechanical Considerations
2.4.1 Form Factor
The board is designed to fit into a microATX form-factor chassis. Figure 13 illustrates
the mechanical form factor for the board. Dimensions are given in inches
[millimeters]. The outer dimensions are 8.86 inches by 7.50 inches [225 millimeters
by 190 millimeters]. Location of the I/O connectors and mounting holes are in
compliance with the ATX specification.

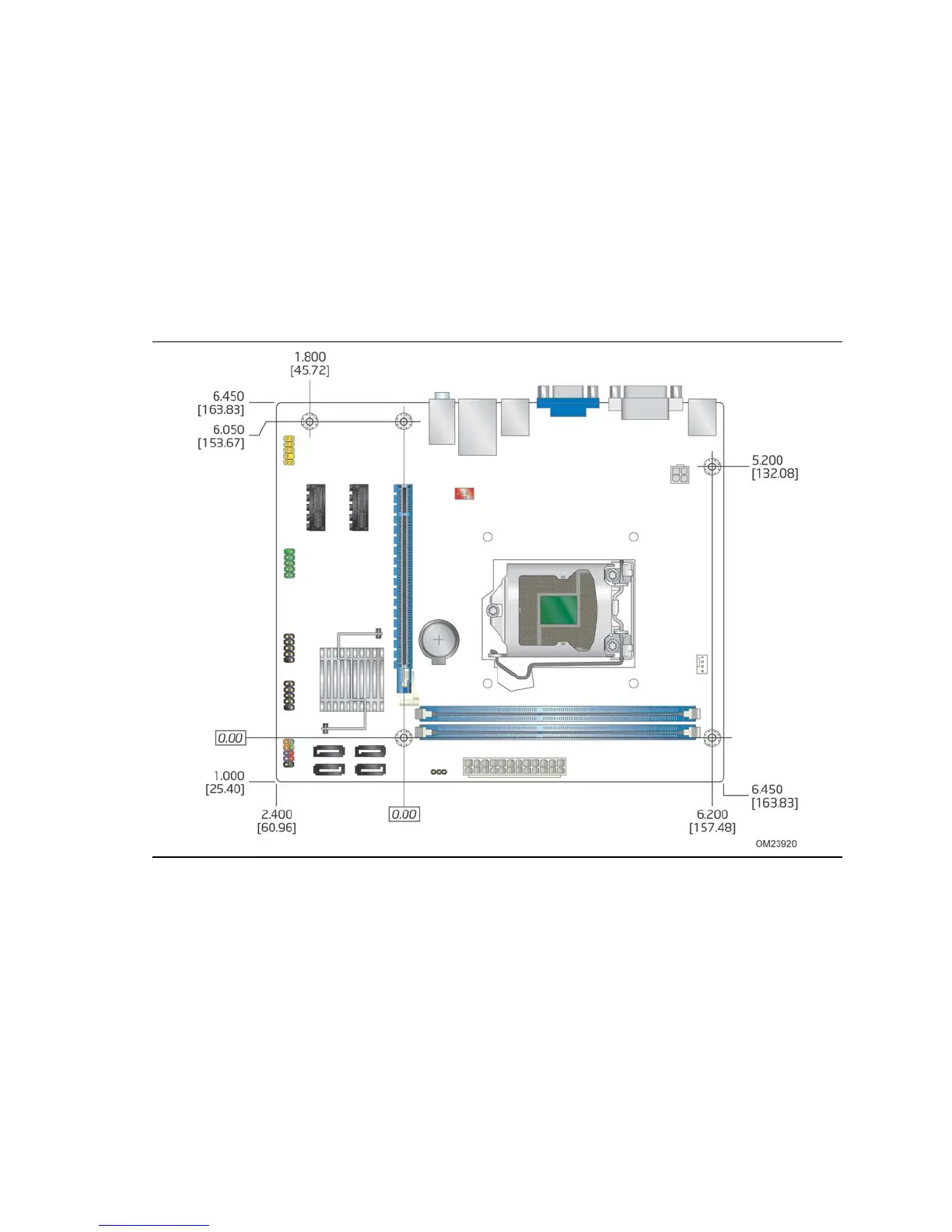

Figure 13. Board Dimensions
