Intel Desktop Board DH61BF Technical Product Specification
38
2.2.1 Back Panel Connectors

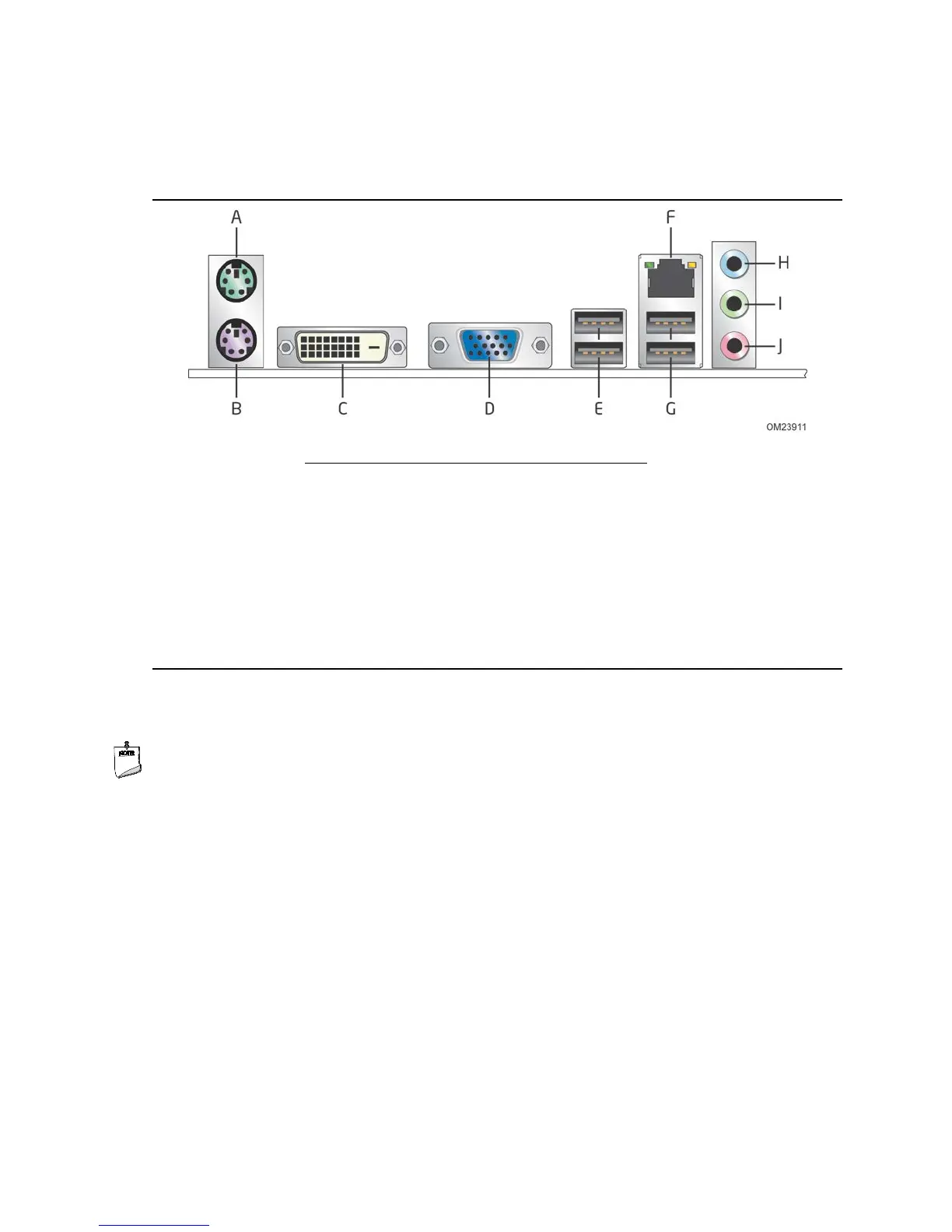

Figure 8 shows the location of the back panel connectors for the board.
Item Description
A
PS/2 mouse connector
B
PS/2 keyboard connector
C
DVI-D connector
D
VGA connector
E
UBS 2.0 ports
F
LAN
G
USB 2.0 ports
H
Line in
I
Line out/front speakers
J
Mic in/side surround
Figure 8. Back Panel Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.

Intel DH61BF Specifications

General

Form Factor	microATX
Chipset	Intel H61
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	2
Max Memory	16 GB
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1
USB Ports	4 x USB 2.0
SATA Ports	4
Video Outputs	VGA, DVI-D
BIOS	UEFI
